SPECIFICATIONS

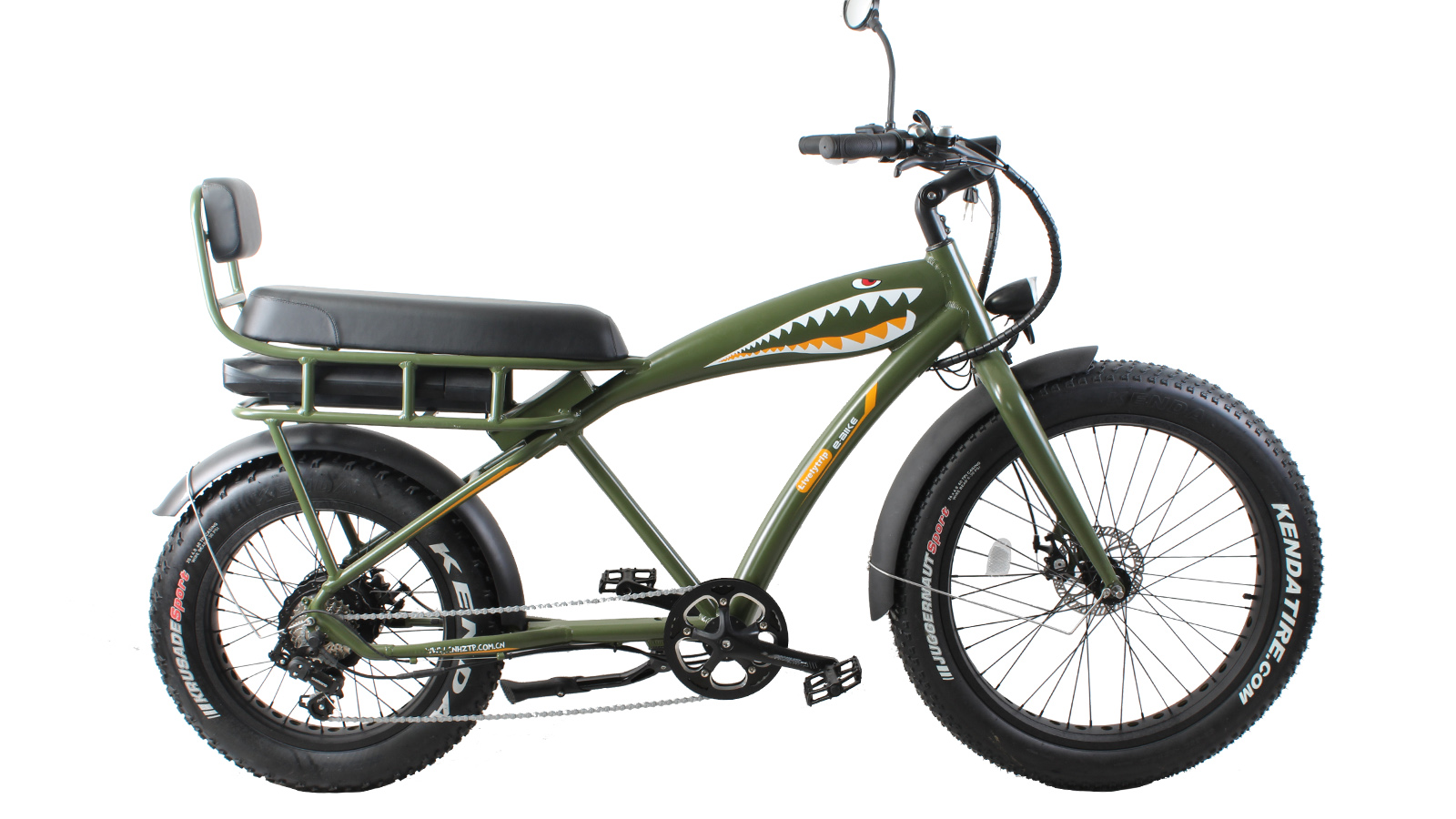

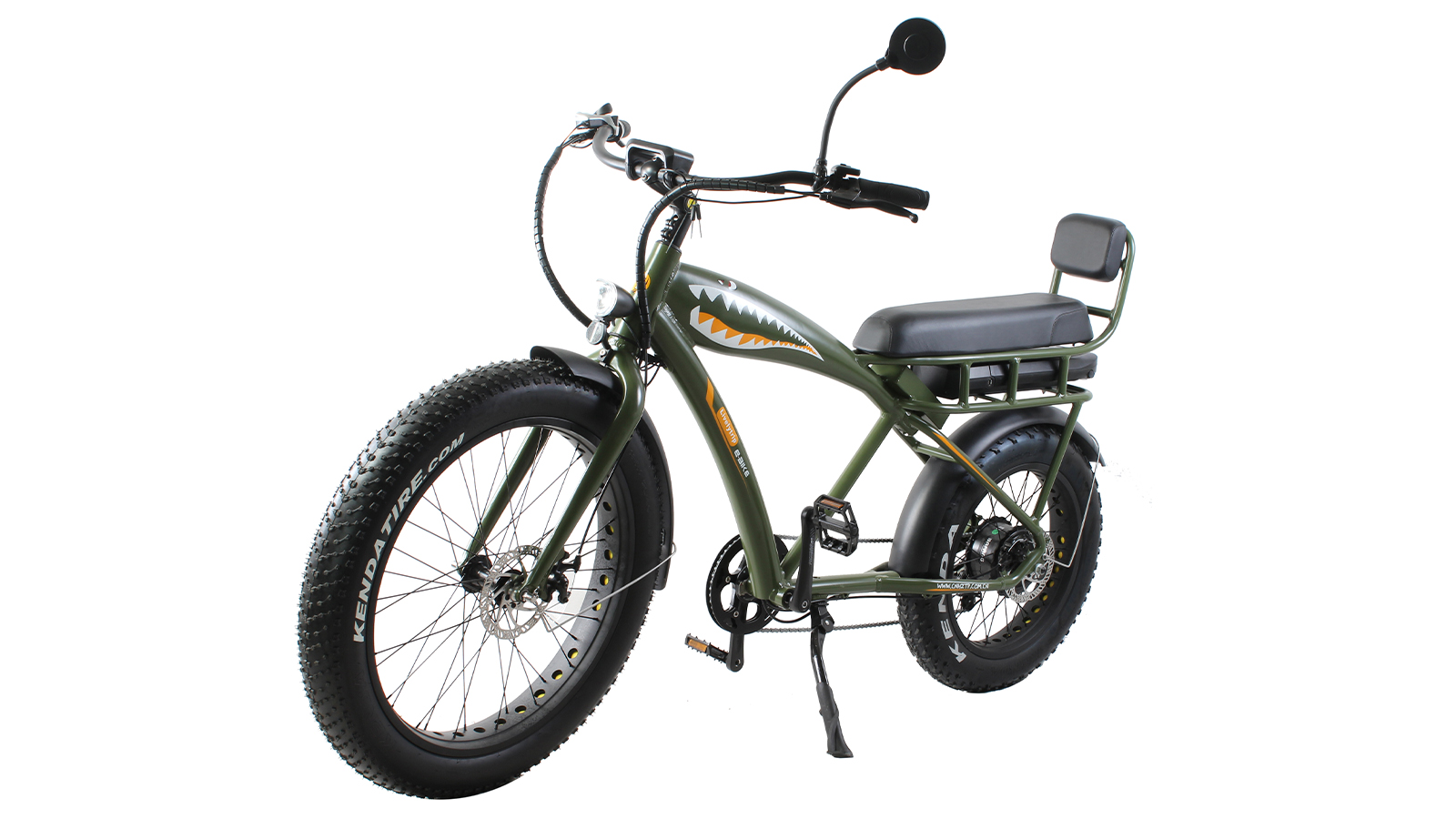

Model No.B18ColorMilitary Green & Customizable
Electric System
MotorBafang 48V500W rear wheel hub motorBattery48V12.5AH lithium battery(Chinese cells)
ControllerIntelligent controllerDisplayKT LCD Display
PAS Sensor12 magnet cadence sensorThrottleThumb Throttle
Charger2A, 110-240V applied
Main Components

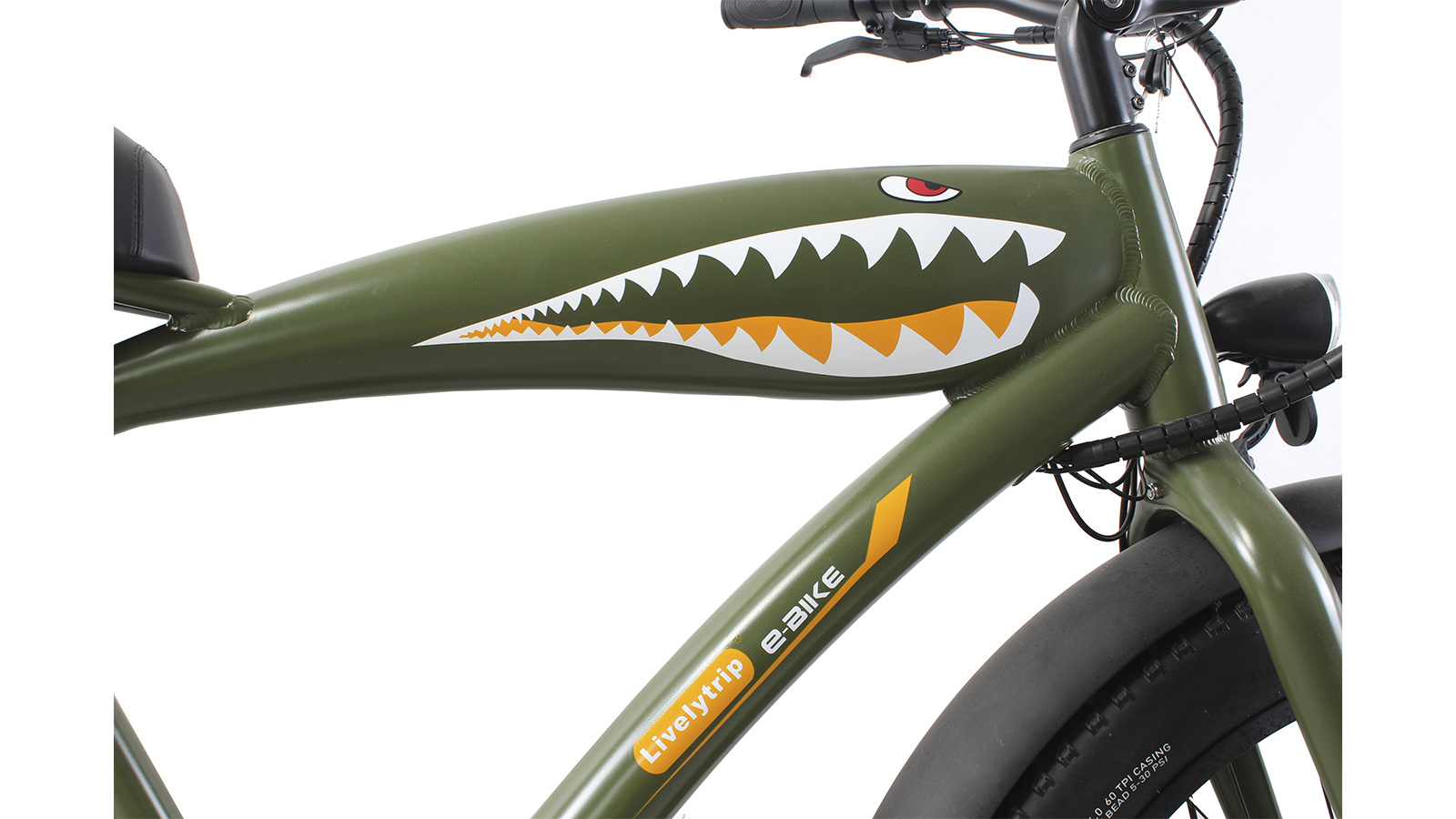

FrameAlu alloyForkAlloy regid fork
HandlebarPromax HB-3203StemPromax MQ-525
BrakeF&R Tektro mechanical disc brakeBrake LeverAlu alloy
TyreKenda front 26”*4.0, rear 20”*4.0RimDouble Wall Rim
SpokeStainless SteelLightFront and Rear Light
ChainwheelProwheel Solid 46T with alloy coverCrankProwheel, 170mm
ChainKMC Z7GearShimano 7-spd
Shift LeverThumb TypeKickstandAlu alloy/ Steel
SaddleLong SaddleGripHL,black 125mm length
PedalYH,black with reflectorsRack
Performance
Range31-60kmCharging Time3-6h
Max. Load150kgMax. Speed35km/h
Warranty1 year for the whole piece

LCD Display and Handlebar

The clear desplay shows all the necessary information; here you can also select your individiual support.The brake levers and the comfortable goose handlebar width are sporty and still comfortable to ride!

F&R Tektro Disc Brake

Tektro MD-M300 mechanical disc brake,with cable actuated mechanical disc brake,actuated with liner pull brake levers.Excellent braking for you at all times.

Bafang G060 rear motor

Our B18 model works with Bafang G060 48V 500W rear motor,can provide plenty of power for your ride,and bring smart ride felling to you.
