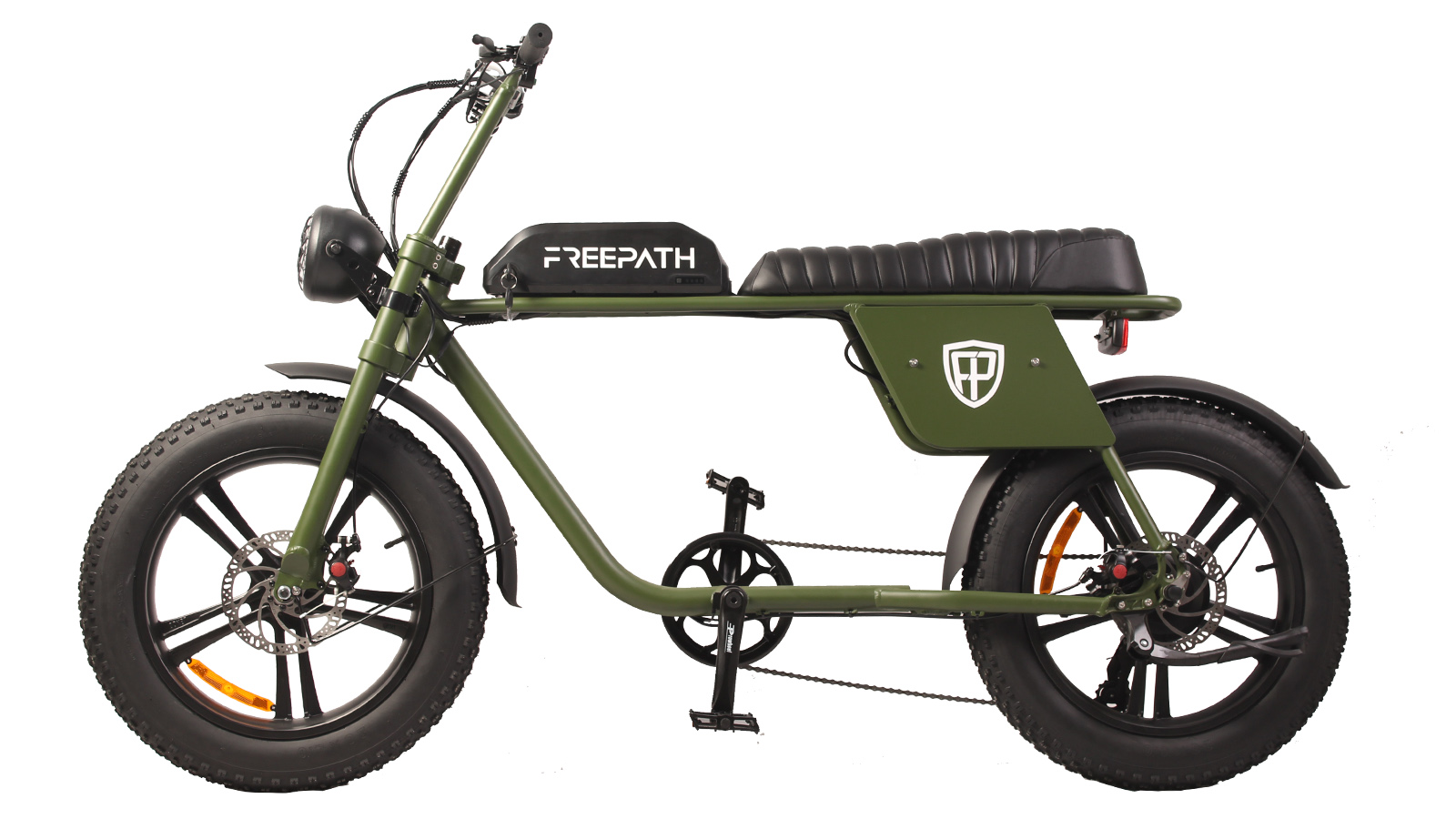

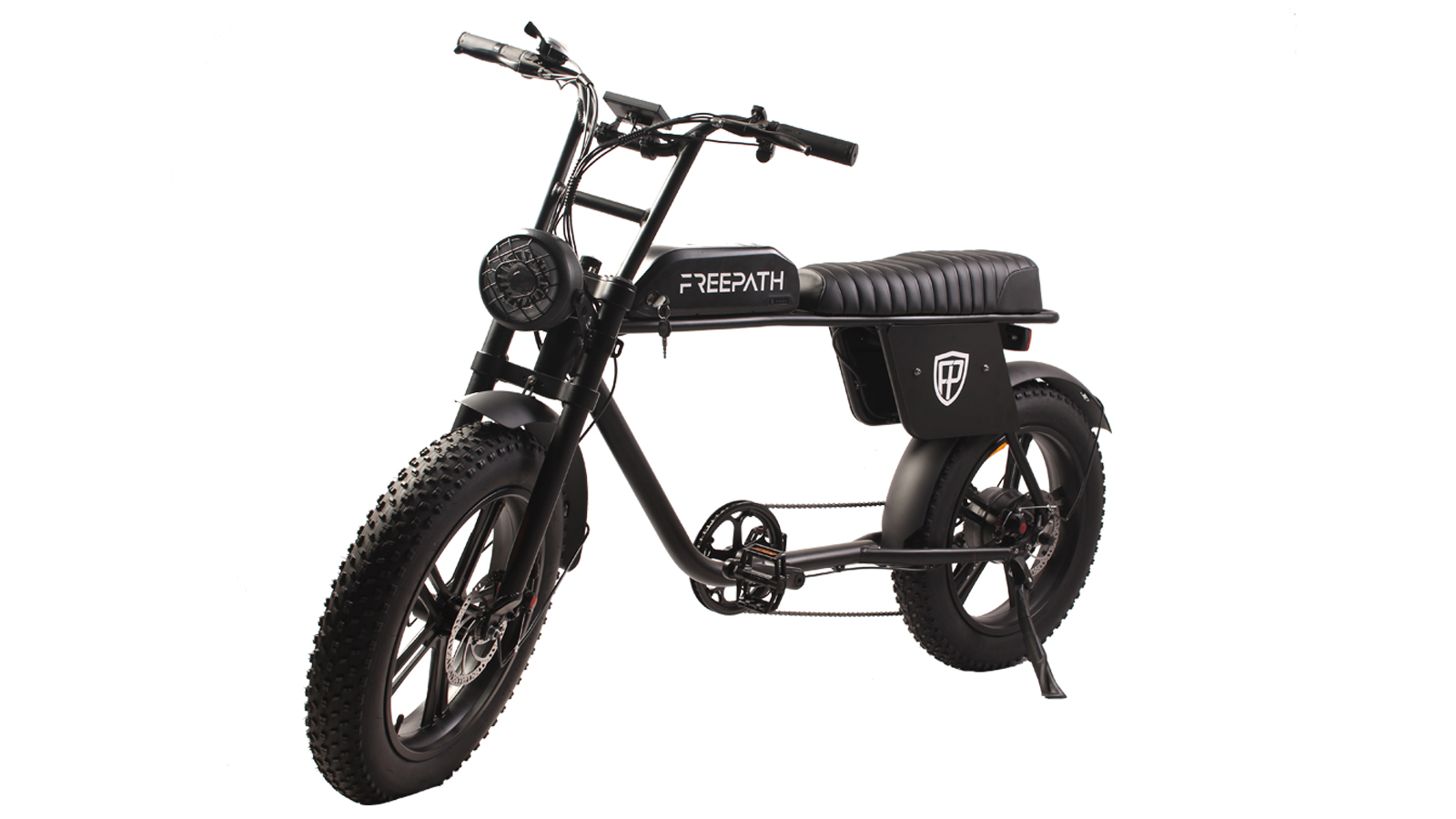

20inch all-terrain fat tire 48v 750w electric bike
The perfect combination of practicalutility and ideal innovation.
Built to accommodate a generous rangeof rider heights and sizes.
Safety features for supporting precious cargo and peace of mind.
JANA LCD Display
The B16 model is equipped with G51 LCD instruments with PAS Level; Speed; Trip/ODO; Headlight; Walk; Mile/KM; and Error Alarm.And the size is 82.4mmx48.1mmx12.4mm,has simple and elegant appearance.
Mechanical Disc Brake
Avid mechanical disc brake,with cable actuated mechanical disc brake,actuated with liner pull brake levers.Excellent braking for you at all times.
Prowheel Chainwheel
The crankset is the start of the ebike’s transmission, and by pedalling,the ebike gains power.The alloy chainring has greater durability during riding, thus extending the life of the chainring.
SPECIFICATIONS
| Model No. | B16 | Color | Military/mat black & Customizable |
| Electric System | |||
| Motor | LAX 48V750W alloy wheel motor | Battery | 48V12.5AH lithium battery(Chinese cells) |
| Controller | Intelligent controller,48V25A | Display | LCD display |
| PAS Sensor | 12 magnet cadence sensor | Throttle | Twist Throttle |
| Charger | 54.6V2A, 110-240 Applied | ||
| Main Components | |||
| Frame | Alu alloy 6061 | Fork | Alu Alloy Regid Fork |
| Handlebar | PROMAX | Stem | alu alloy, integrated with the handlebar |
| Brake | Avid mechanical disc brake | Brake Lever | Alu alloy |
| Tyre | Chaoyang 20”*4.0”, 30TPI | Rim | Double Wall Rim |
| Spoke | Stainless Steel | Light | Head Light&rear light |
| Chainwheel | Prowheel 46T with plastic cover | Crank | Prowheel, plastic cover |
| Chain | KMC, Steel | Gear | Shimano TZ 7-spd |
| Shift Lever | Twist Type | Kickstand | Alu alloy/ Steel |
| Saddle | CHIFAN | Grip | HL |
| Pedal | Comfortable Type | Rack | |
| Performance | |||
| Range | 31-60km | Charging Time | 3-6h |
| Max. Load | 150kg | Max. Speed | 35km/h |
| Warranty | 1 year for the whole piece |
