Model No.B17ColorOrange & Customizable
Electric System
MotorBafang G020 48V500W hub motorBattery48V 15Ah lithium battery(LG cells)
Controller48V20A Intelligent ControllerDisplayAPT Colorful display(IPS)
PAS Sensor12 magnet cadence sensorThrottleThumb Throttle
Charger3A, 110-240V applied
Main Components
FrameAlu alloyForkSuspension fork
HandlebarPromax  HB-T320 city type, alu alloyStemPromax  MA-579,  28.6*31.8* adjustable
BrakeF&R Tektro HD-E350 hydraulic disc brakeBrake LeverAlu alloy
TyreKenda 26”*3.0RimDouble Wall Rim
SpokeStainless SteelLightFront and Rear light
ChainwheelProwheel Solid 46T chainwheelCrankProwheel, 170mm aluminium alloy crank
ChainKMC Z7 stainless with quick release linkGearShimano 7-spd
Shift LeverThumb TypeKickstandAlu alloy/ Steel
SaddleVELO Comfortable saddleGripTPR with lock ring, 130MM each side
PedalWellgo B087 alu alloy pedalRackRear carrier for food box
Range31-60kmCharging Time3-5h
Max. Load200kgMax. Speed40km/h
Warranty1 year for the whole piece

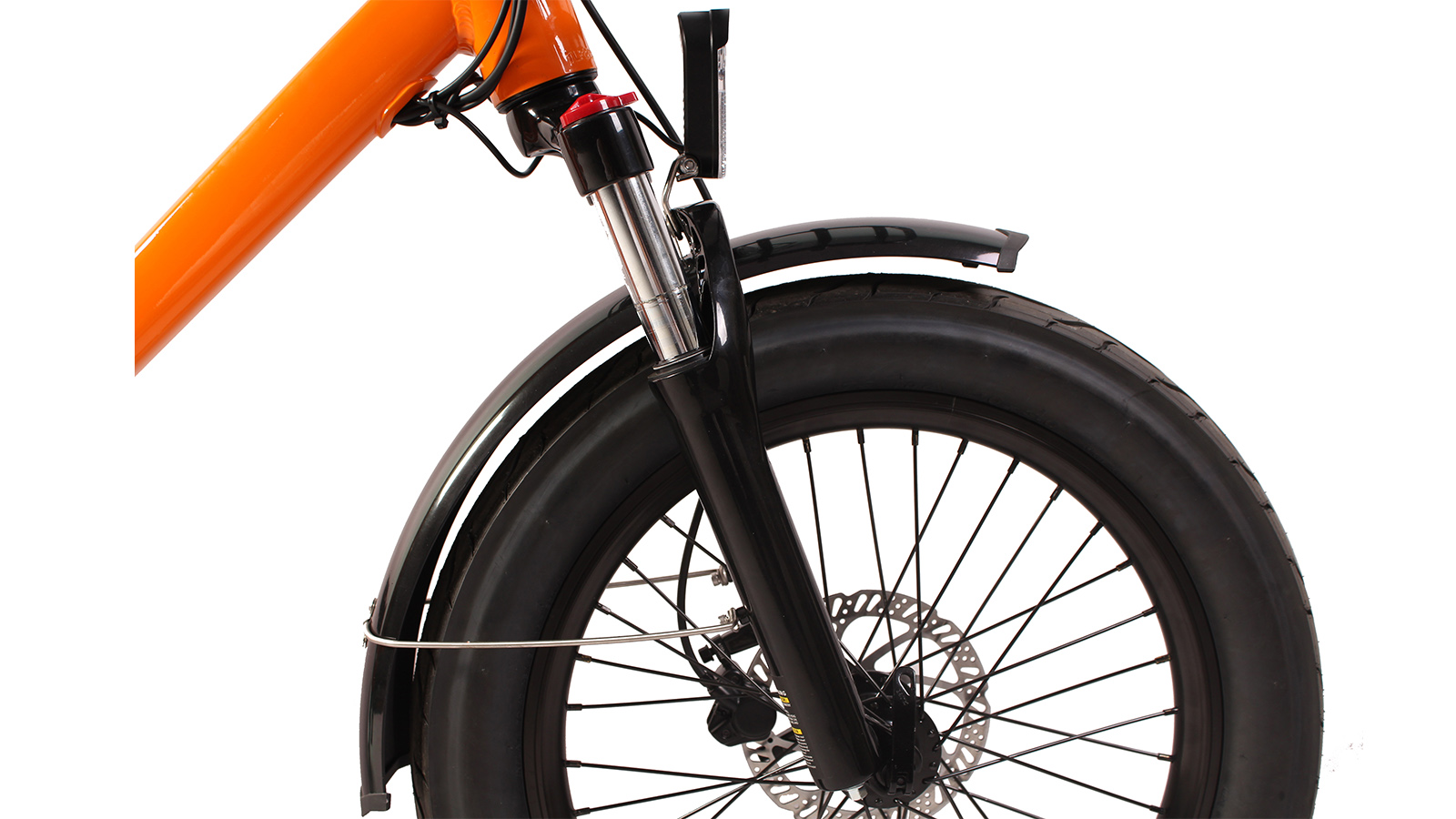

Suspension Fork

The suspension fork is used to suppress the impact of the body when passing through the rough road surface, and improve the riding comfort.

Hydraulic Disc Brake

The high performance of the hydraulic disc brake greatly improves the safety of braking in case of riding on mountain.Hydraulic disc brake in a variety of complex conditions (rain, snow, mud road) still has a relatively good performance.

Rear Rack&Wooden foot rest pedal

Rear rack and wooden pwads provide the rider with a greater load capacity, not only for people but also for objects, and to a large extent, free the rider’s body of load.
