Model No.B14ColorTitanium and Customizable
Electric System
MotorBafang 48V500W rear wheel hub motorBattery48V15AH lithium battery(LG cells)
ControllerIntelligent controller 48V20ADisplayLCD display
PAS Sensor12 magnet cadence sensorThrottlethumb throttle
Charger48V2A, 110-240 Applied
Main Components
FrameAlu alloy 6061ForkMOZO alloy suspension fork
HandlebarPromax HB-3018StemPromax MA-400
BrakeTektro mechanical disc brakeBrake LeverAlu alloy
TyreKenda 26*4.0”RimDouble Wall Rim
SpokeStainless SteelLightFront and rear light
ChainwheelProwheel  46T with plastic coverCrankBaFang, Alu alloy
ChainKMC Z7GearShimano Tourney7-spd
Shift LeverThumb TypeKickstandAlu alloy/ Steel
SaddleVelo VL3125 mountain typeGripHL-G311-1A,black 130mm length
PedalYH-44X with reflector,blackRackNo
Range30-40kmCharging Time3-6h
Max. Load150kgMax. Speed25km/h
Warranty1 year for the whole piece

Disc brake

The high performance of the disc brake greatly improves the safety of braking in case of riding on mountain.Disc brake in a variety of complex conditions (rain, snow, mud road) still has a relatively good performance.

Suspension fork

The suspension fork is used to suppress the impact of the body when passing through the rough road surface, and improve the riding comfort

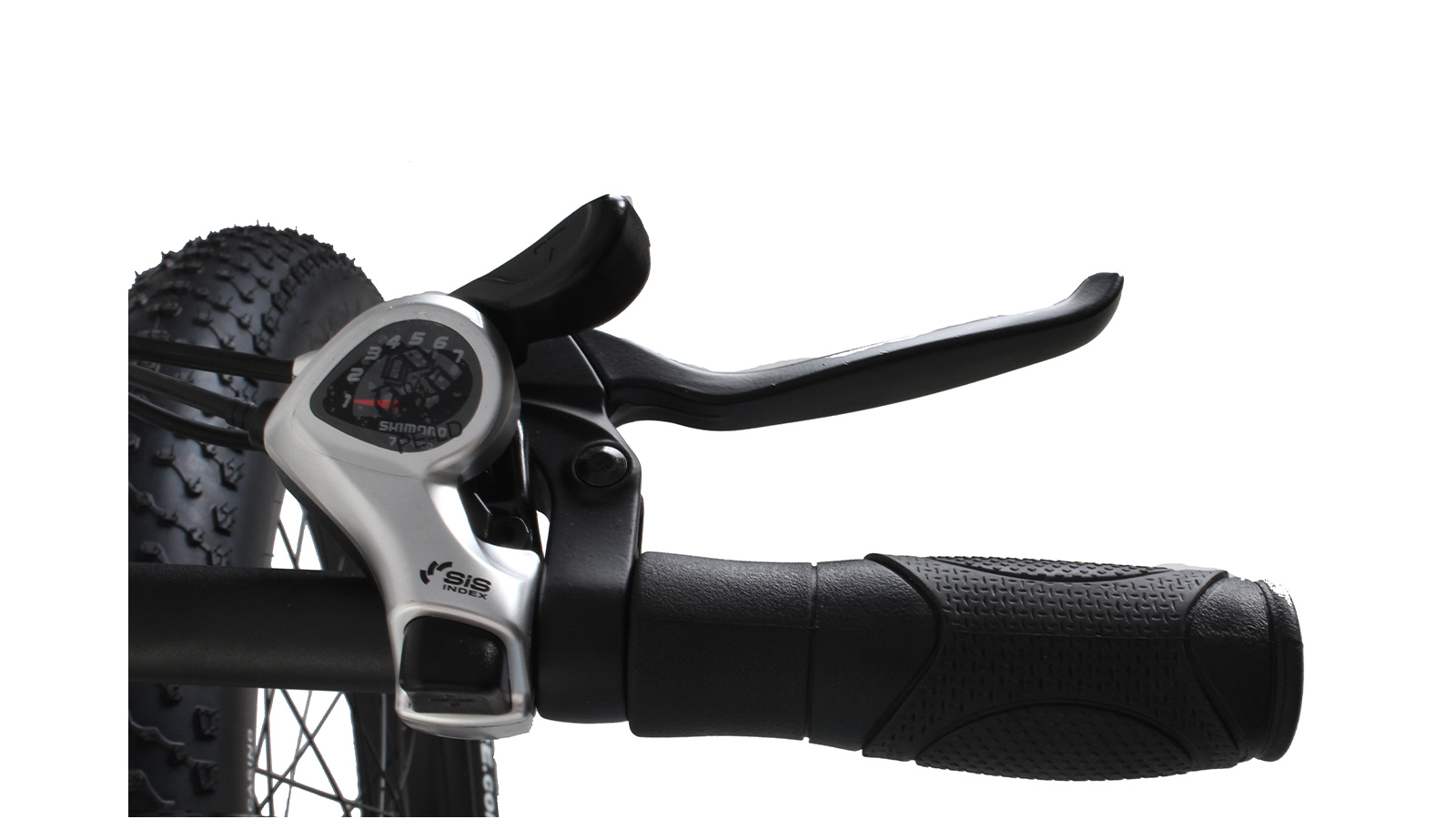

Shimano Derailleur

The road condition will be encountered with ramps,when climb a hill,you need overcome the gravity to climb up,through the gearshift,originally need to step on a circle of crant to go the road,become step on two circles.
