SPECIFICATIONS
| Model No. | B13 | Color | Red and Customizable |
| Electric System | |||
| Motor | Bafang BBS-HD 48V1000W motor | Battery | 48V15AH lithium battery(LG cells) |
| Controller | Intelligent controller 48V30A | Display | LCD display |
| PAS Sensor | Bafang speed sensor | Throttle | thumb throttle |
| Charger | 48V3A, 110-240 Applied | ||
| Main Components | |||
| Frame | Alu alloy 6061 | Fork | GT 860 AIR suspension fork |
| Handlebar | Promax HB-3018 | Stem | Promax MA-570 |

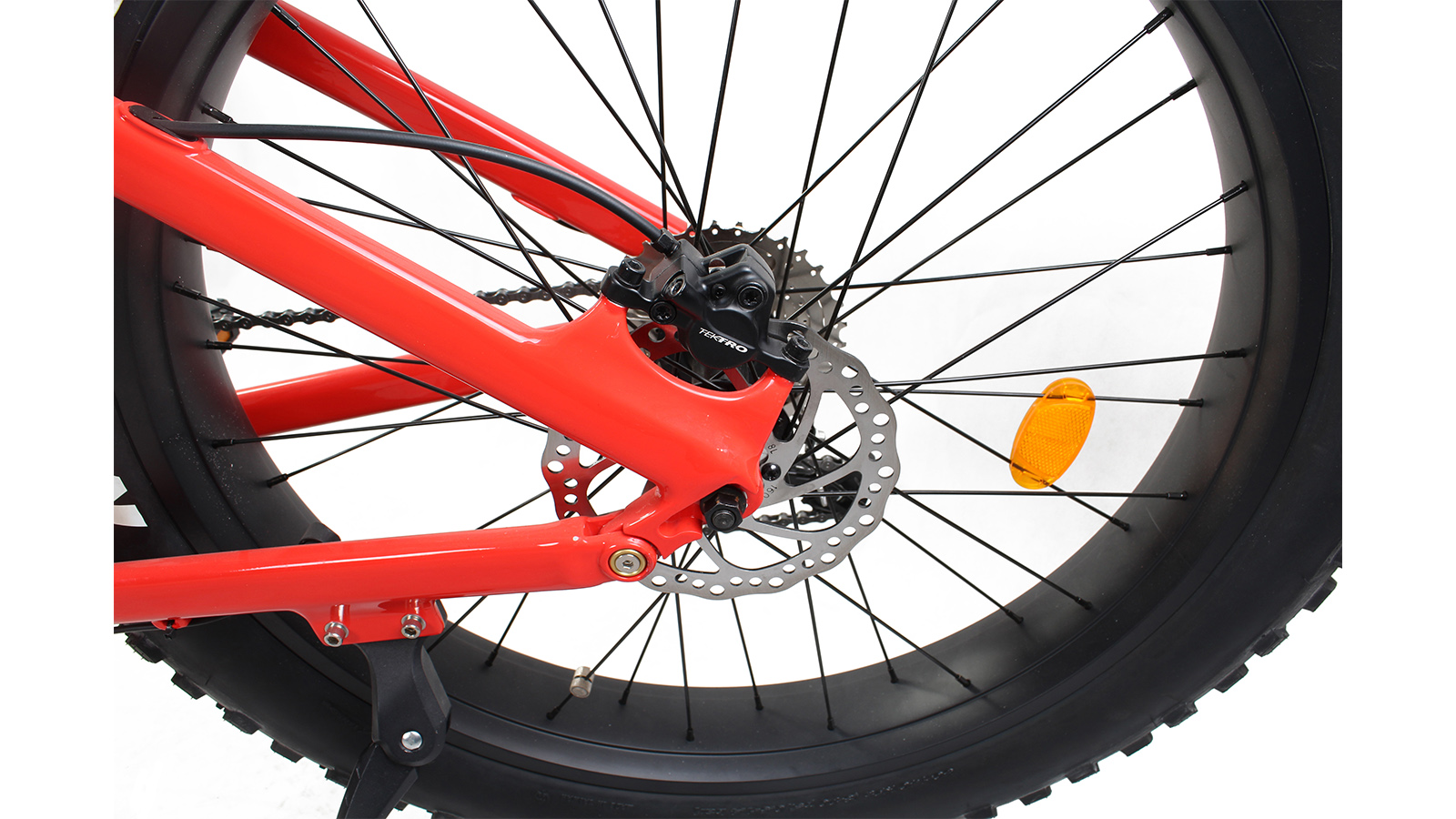

| Brake | Tektro HD-E350 hydraulic disc brake | Brake Lever | Alu alloy |
| Tyre | MAXXISS 26*4.8” | Rim | Double Wall Rim |
| Spoke | Stainless Steel | Light | Front and rear light |
| Chainwheel | Bafang 46T | Crank | BaFang, Alu alloy,170mm |
| Chain | KMC X9 | Gear | Shimano Alivio 9-spd |
| Shift Lever | Thumb Type | Kickstand | Alu alloy/ Steel |
| Saddle | SR Freeway mountain type | Grip | VLG-1389D3 ,black |
| Pedal | Freeway,black with reflector | Rack | No |
| Performance | |||
| Range | 10-30km | Charging Time | 3-6h |
| Max. Load | 150kg | Max. Speed | 25km/h |
| Warranty | 1 year for the whole piece |
1000W mid motor
The advantage of the mid-mounted motor is that it can maintain the front and rear balance of the electric vehicle to the greatest extent possible, and it will not affect the shock absorption, and the motor will be less affected by the road surface on the bumpy road.
Suspension frame
The suspension frame is used to suppress the impact of the body when passing through the rough road surface, and improve the riding comfort
Shimano Alivio Derailleur
The road condition will be encountered with ramps,when climb a hill,you need overcome the gravity to climb up,through the gearshift,originally need to step on a circle of crant to go the road,become step on two circles.
