SPECIFICATIONS
| Model No. | EC2 | Color | Orange & Customizable |
| Electric System | |||
| Motor | Bafang H700 36V250W brushless rear motor | Charger | 110-240v AC 50-60HZ, 36V3A Applied |
| Battery | LG 36V 15Ah Lithium battery | PAS | Torque sensor |
| Controller | 36V 15A Integrated controller | Throttle | W/O |

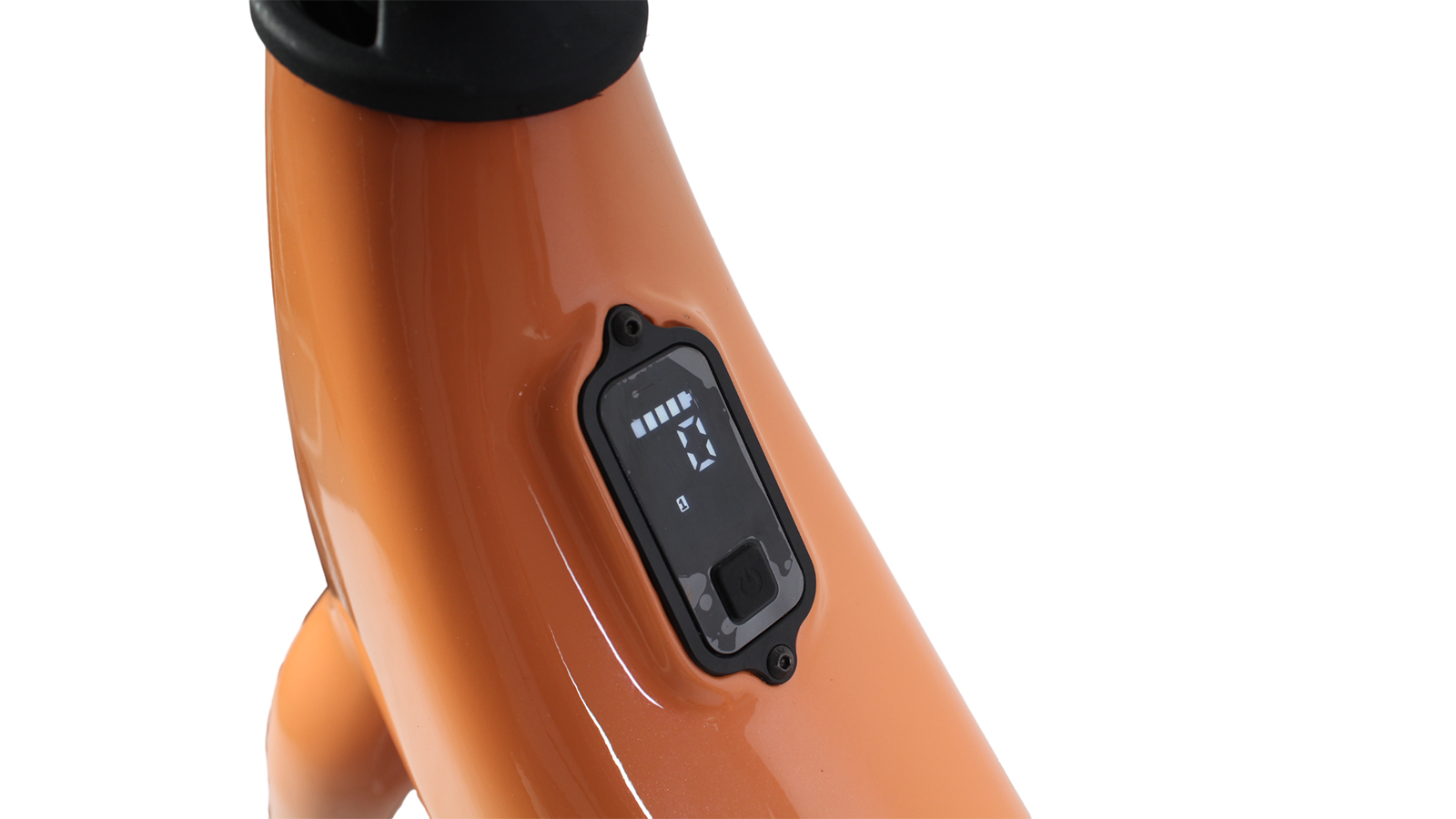

| Display | Bafang 163CAN LCD displayC IPS Color display | ||
| Main Components | |||
| Frame | Carbon fiber | Saddle | SR A194H gel saddle |
| Front Fork | Carbon Fiber Rigid Fork | Pedal | Wellgo, aluminum |
| Rims | Double wall, aluminum alloy, 36H*13G | Stem | Promax, Aluminum alloy |
| Tires | KENDA 700C*38C | Brake Levers | Tektro E-cut off |
| Brake | F/R Tektro HD-M530 hydraulic disc brake with 180mm rotor | Crankset | Gates 55T with 170mm crank |
| Speed Shifter Lever | Single Speed | Chain | Gates Belt Drive |
| Rear Derailleur | Gates Single Speed | Spoke | Stainless steel |
| Seat post | Promax, aluminum | ||
| Performance | |||
| Max Speed | 25-30 km/h | Charging Time & Life | 4-5 Hours, >900 Cycles |
| Range per charge | 50-80km by PAS | Warranty | 1 year for electronic parts, 2 year for the frame |
| Loading Capacity | 120kg |
Fork and baterry
The carbon fiber fork offer a Lightweight . And a battery you can remove and recharge, without lugging the whole bike to a power socket
Carbon belt drive
Needs less taking care of than the traditional chains. Weather-resistant, flexible, durable, it’s made with stretch-free ates carbon fibre tensile cords. And it’s silent too.

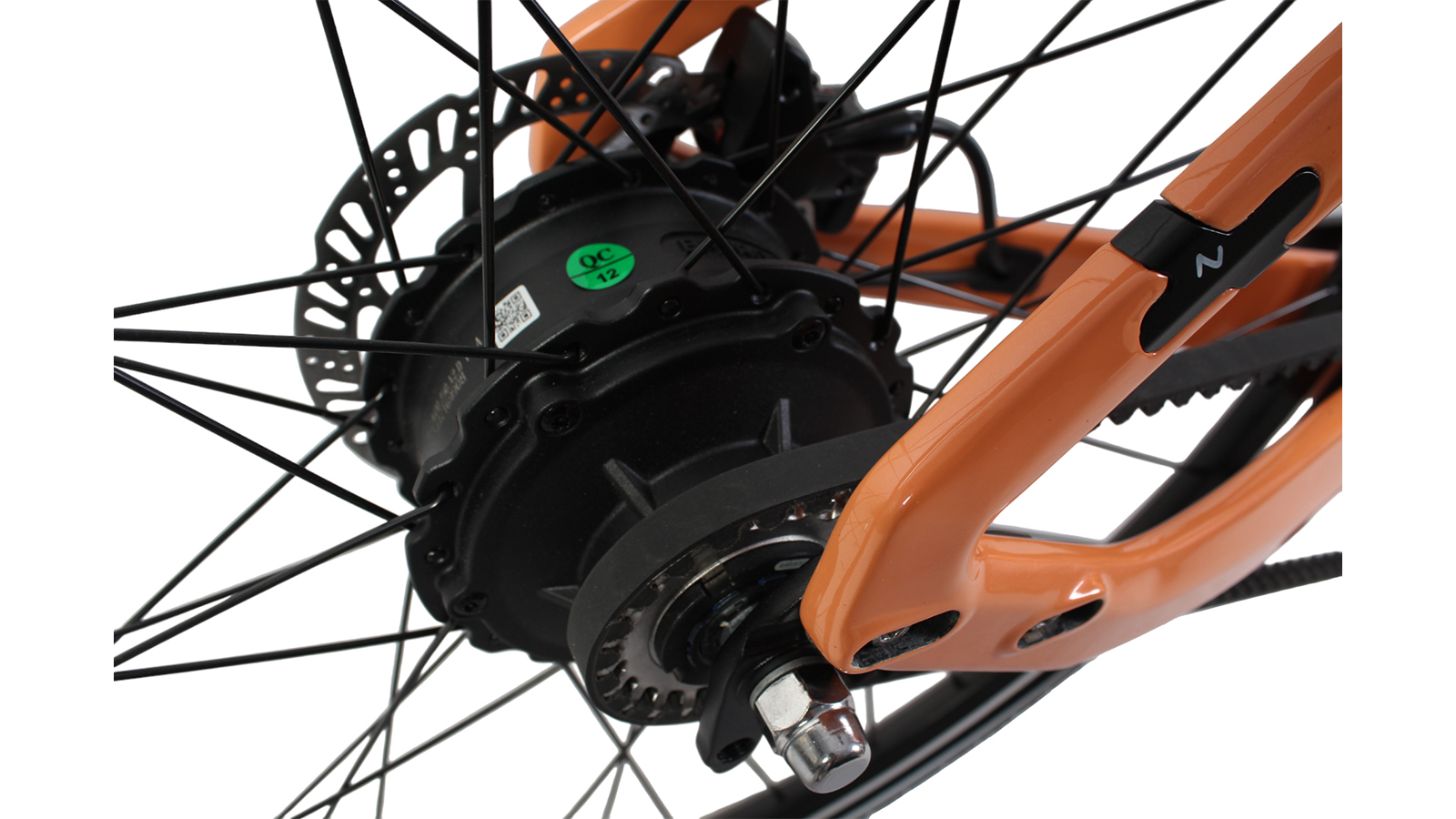

Disc brake& rear hub motor
The high performance of the disc brake greatly improves the safety of emergency braking in case of emergency. 250W Bafang rear hub motor provides a quite and lissome ride feeling.
