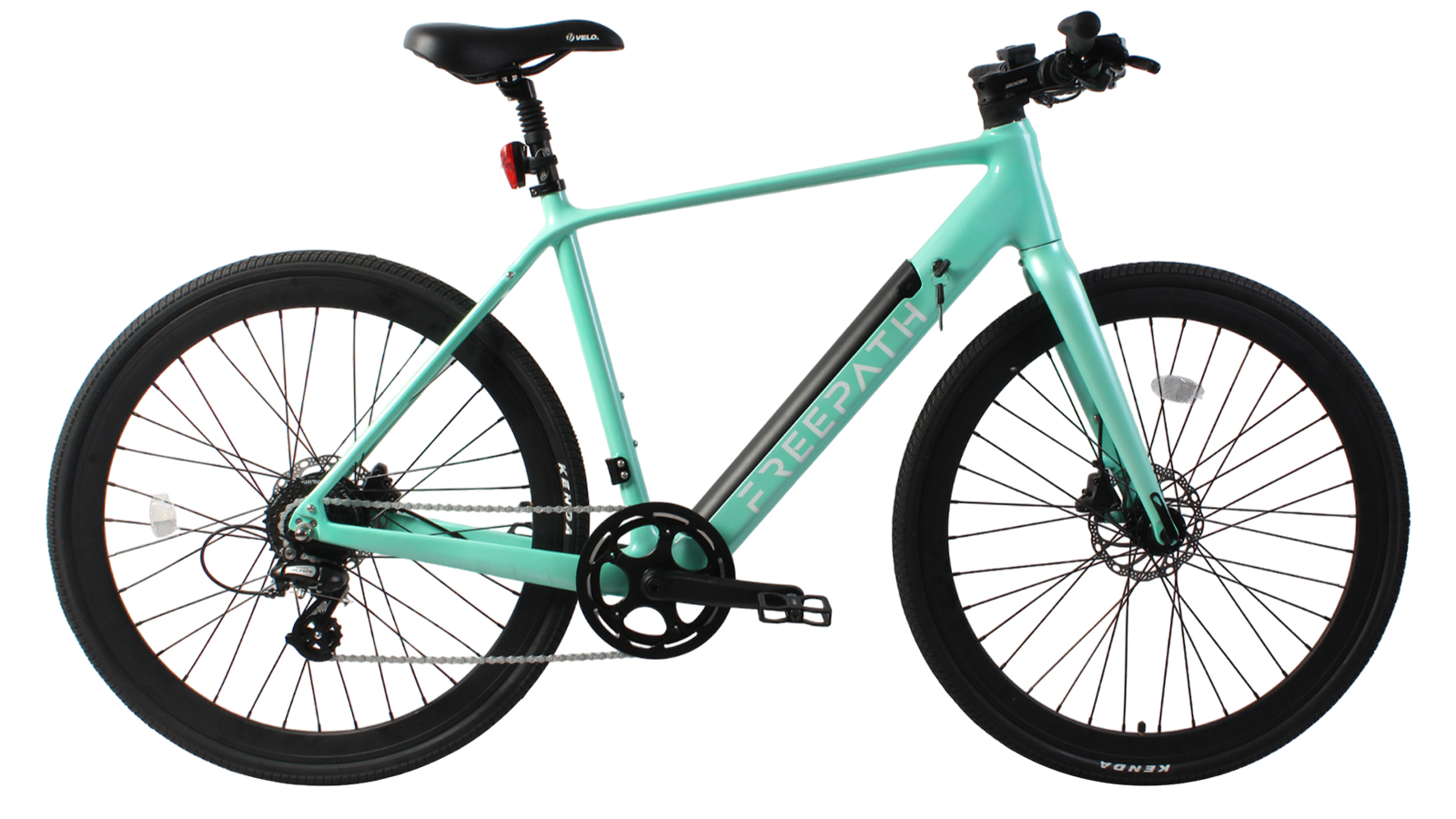

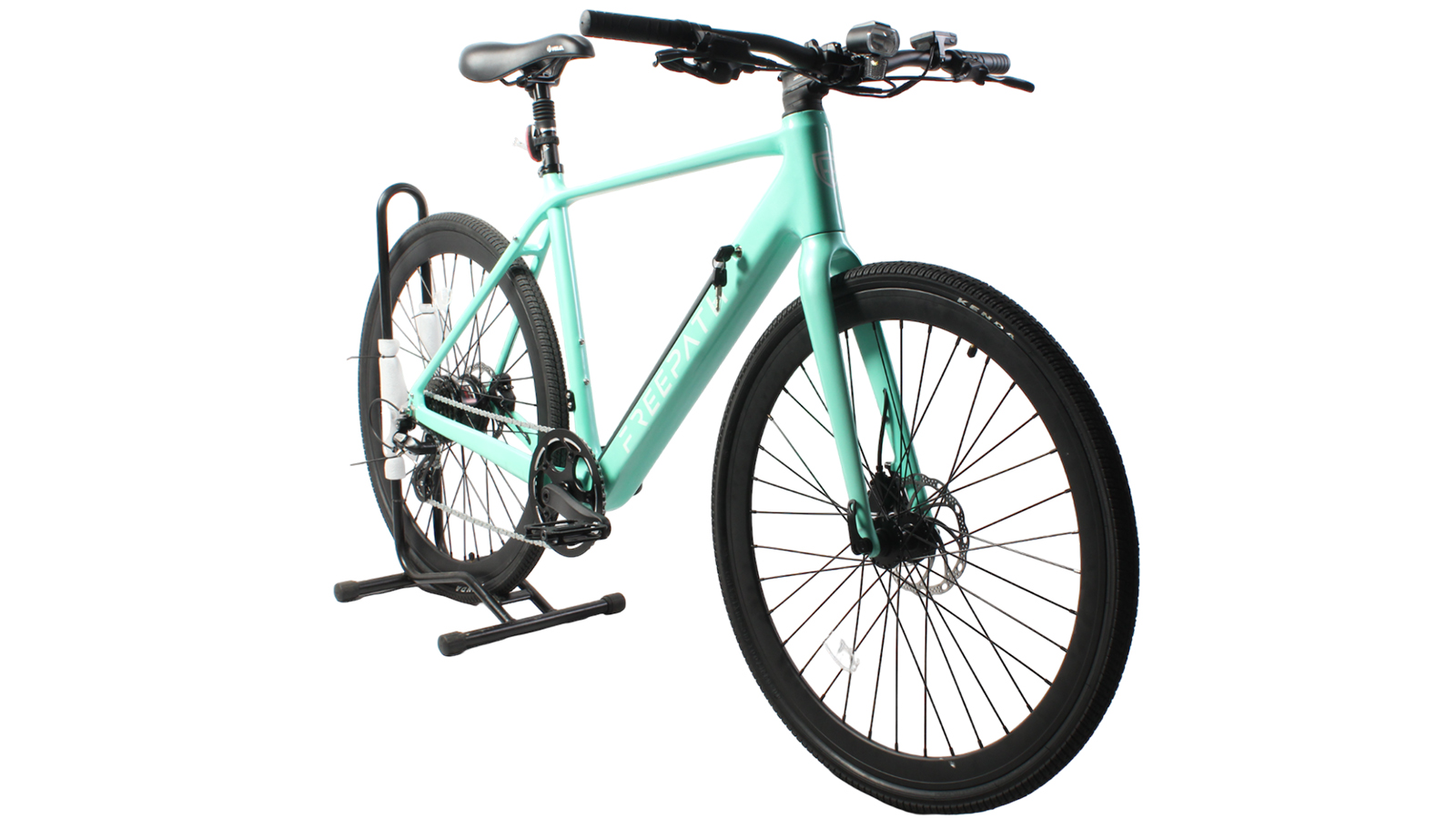

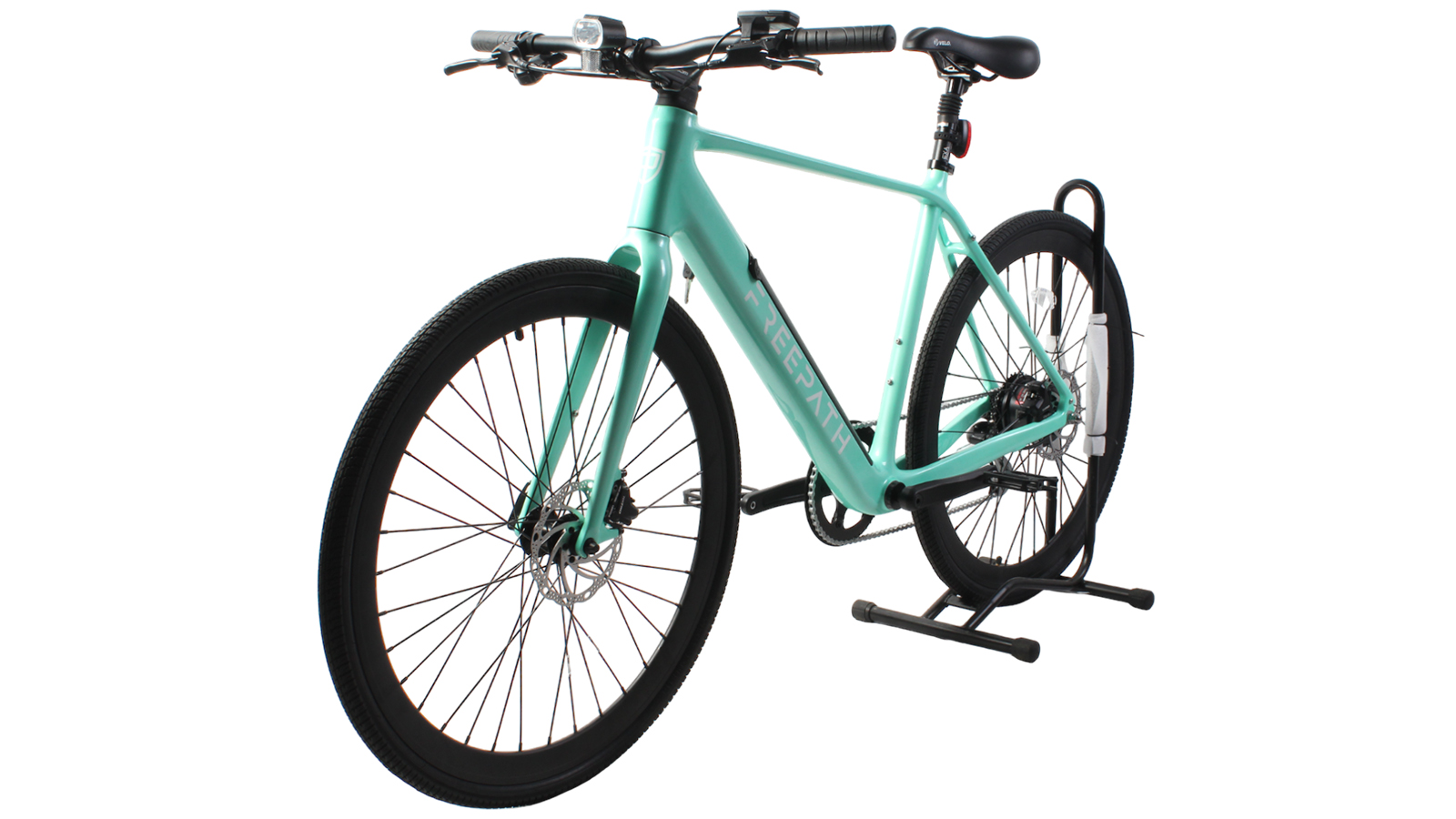

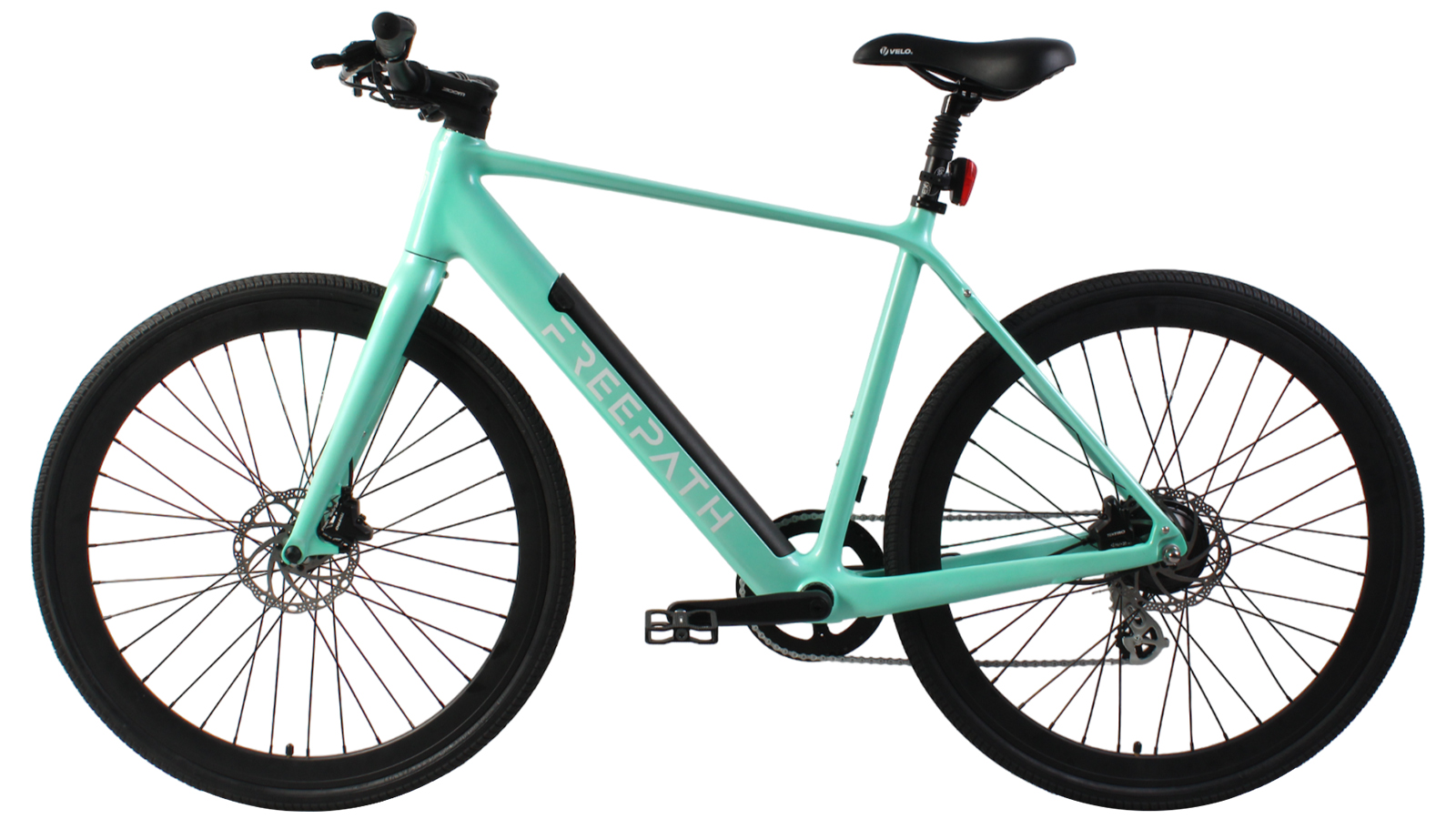

250W Light Weight Carbon Fiber Electric Road Bike
![](https://www.freepathebikes.com/wp-content/uploads/2023/11/ezgif.com-optimize-1.gif)
![](https://www.freepathebikes.com/wp-content/uploads/2023/07/未标题-2-2-1024x109.jpg)
The perfect combination of practicalutility and ideal innovation.
Built to accommodate a generous rangeof rider heights and sizes.
Safety features for supporting precious cargo and peace of mind.
Cockpit and handlebar
The clear desplay shows all the necessary information; here you can also select your individiual support.The brake levers and the comfortable handlebar width are sporty and still comfortable to ride!
![](https://www.freepathebikes.com/wp-content/uploads/2023/08/主图格式5-1024x576.jpg)
![](https://www.freepathebikes.com/wp-content/uploads/2023/08/主图格式6-1024x576.jpg)

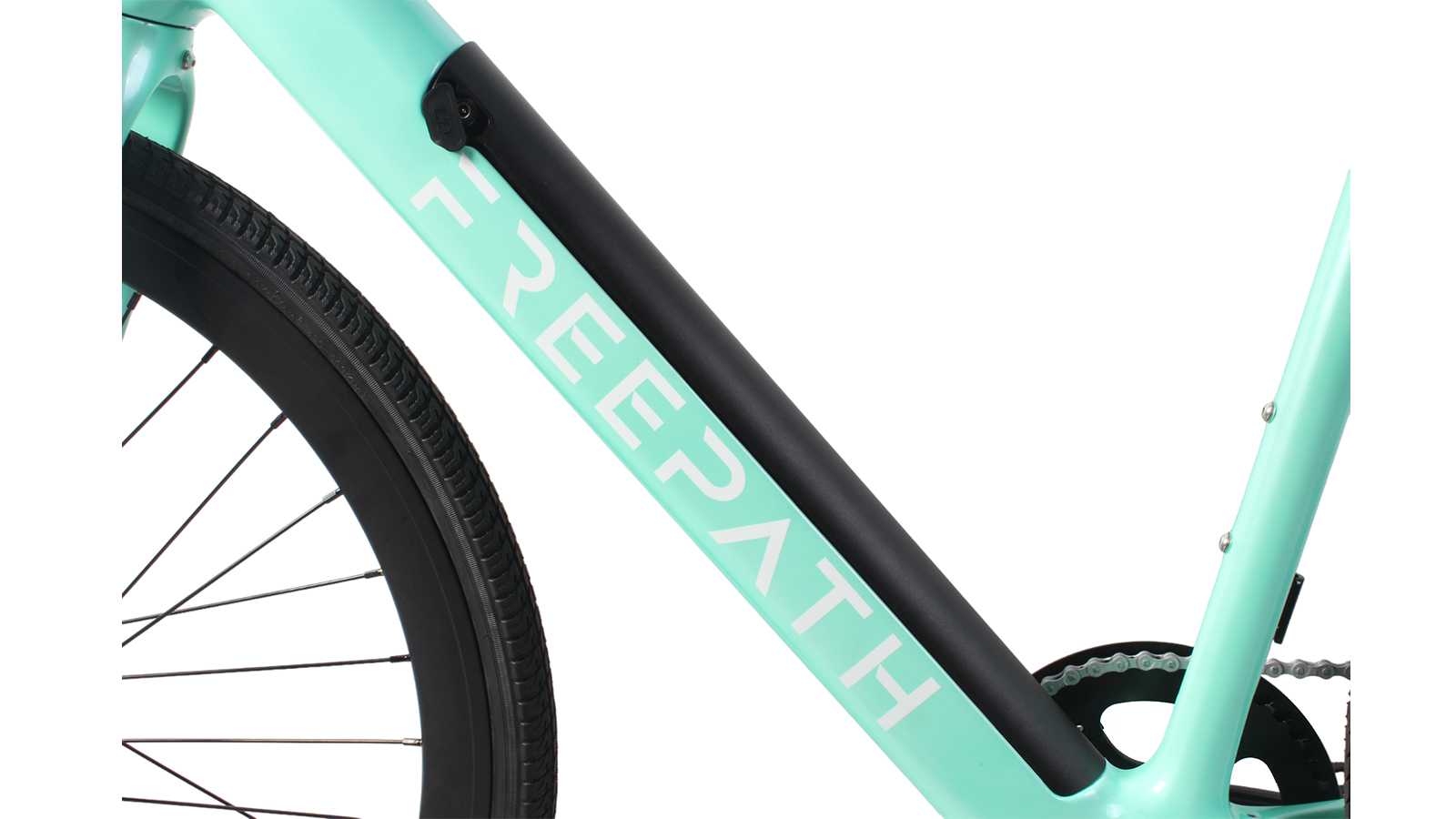

Fock and baterry
The carbon fiber fork offer a Lightweight . And a battery you can remove and recharge, without lugging the whole bike to a power socket

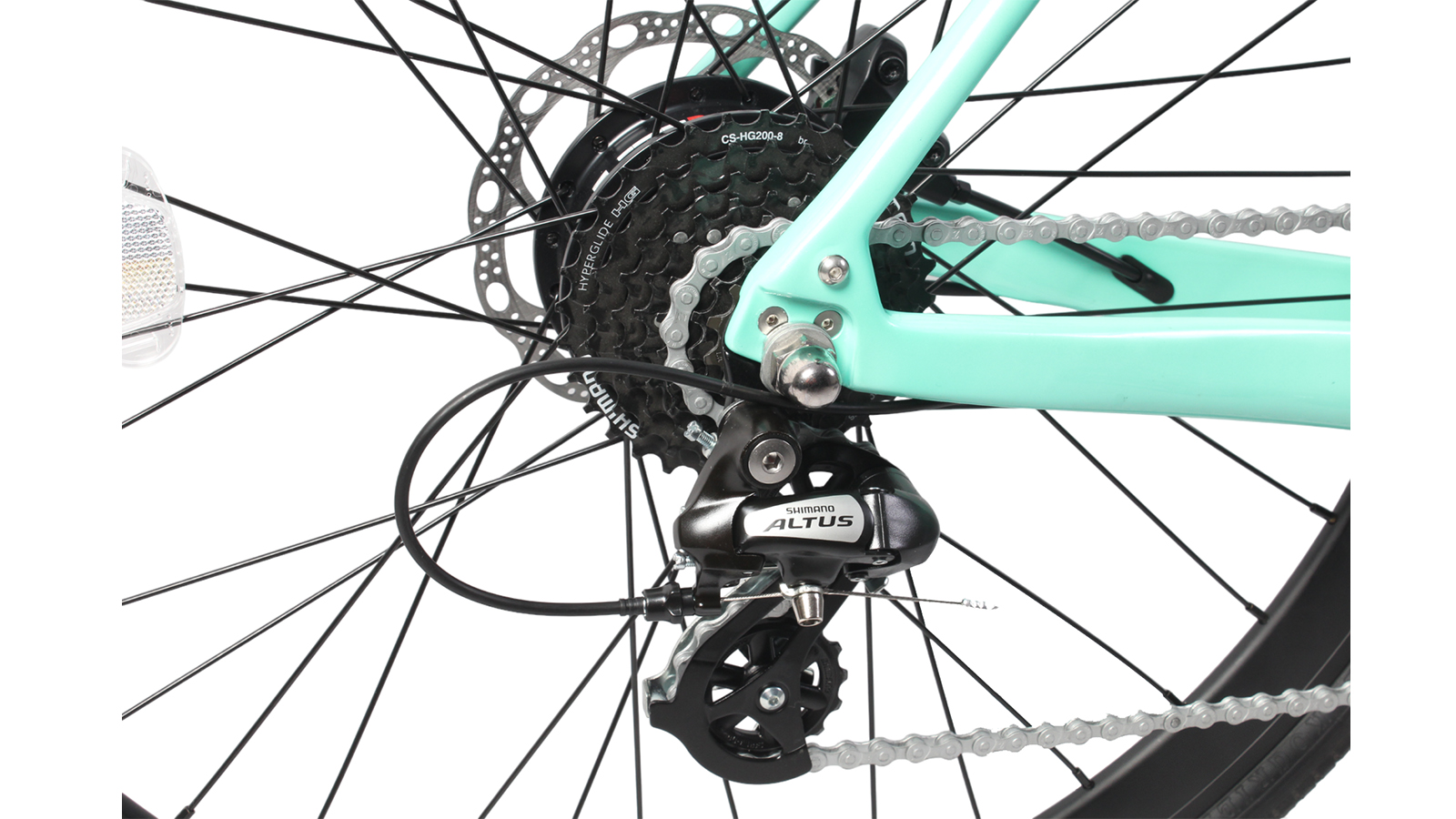

Shimano 8 speed Derailleur
Shimano 8 speed provides the riders with more options whether riding the varies of roads, not only cruising city but climing hills.
![](https://www.freepathebikes.com/wp-content/uploads/2023/08/主图格式7-1024x576.jpg)
SPECIFICATIONS
Model No. | EC3-NEW | Color | Black, White & Customizable |
Electric System | |||
Motor | AKM 36V250W brushless rear motor | Battery | LG 36V 10Ah |
Controller | MIVICE 36V15A intelligent controller | Display | Velofox DM01 LED display |
PAS Sensor | Torque sensor | Throttle | W/O |
Charger | 36V2A, 110-240 Applied | ||
Main Components | |||
Frame | Carbon Fiber | Fork | Carbon Fiber fork for disc brake |
Handlebar | Alu alloy handlebar, W:700mm +6°, black | Stem | Alu alloy, E:90, black |
Brake | F/R Tektro HD-R280 hydraulic disc brake with 160mm rotor | Brake Lever | E-cut off Brake Lever, black |
Tyre | KENDA 700C*38C | Rim | double wall rim |
Spoke | Stainless Steel | Light | Head Light and rear light |
Chainwheel | Topwheel 46T | Crank | 170mm crank |
Chain | KMC, Steel | Gear | Shimano Altus 8 SPD |
Shift Lever | Thumb Type | Kickstand | W/O |
Saddle | Road type comfortable saddle | Grip | VELO |
Pedal | Alu alloy, black | Rack | W/O |
Performance | |||
Range | 31-60km | Charging Time | 3-6h |
Max. Load | 120kg | Max. Speed | 25km/h |
Warranty | 1 year for the whole piece |
