SPECIFICATIONS
| Model No. | C7 M | Color | Orange and Customizable |
| Electric System | |||
| Motor | Bafang M600 48V 500W mid motor | Battery | 48V15AH frame battery (LG cells) |
| Controller | Bafang M600 | Display | LCD display |
| PAS Sensor | Bafang cadence sensor&torque sensor | Throttle | thumb throttle |
| Charger | 48V2A, 110-240 Applied | ||
| Main Components | |||
| Frame | Alu alloy 6061 | Fork | Suntour NEX fork，full alloy with hydraulic lock |
| Handlebar | Promax HB-3188 | Stem | Promax MA-400 |
| Brake | Tektro HD-E350 hydraulic disc brake | Brake Lever | Alu alloy |
| Tyre | Kenda 27.5”*2.1 | Rim | Double Wall Rim |
| Spoke | Stainless Steel | Light | Front and rear light |
| Chainwheel | Bafang 40T with plastic cover | Crank | BaFang, Alu alloy,170mm crank |
| Chain | KMC X9 | Gear | Shimano Tourney 9-spd |
| Shift Lever | Thumb Type | Kickstand | Alu alloy/ Steel |
| Saddle | VELO 6322 mountain type | Grip | HL-G311-1A,black 130mm length |
| Pedal | Wellgo,B087 | Rack | NO |
| Performance | |||
| Range | 31-60km | Charging Time | 4-6h |
| Max. Load | 100kg | Max. Speed | 25km/h |
| Warranty | 1 year for the whole piece |
Shimano derailleur
This modle is designed With Shimano Tourney 9 speed derailleur, the riders can change the speed smoothly. It can adopt various situations and provide different riding experience.
Bafang M600 mid motor
This model is equipped with a powerful Bafang M600 mid motor, making riding smoothly and moutain cycling easily.

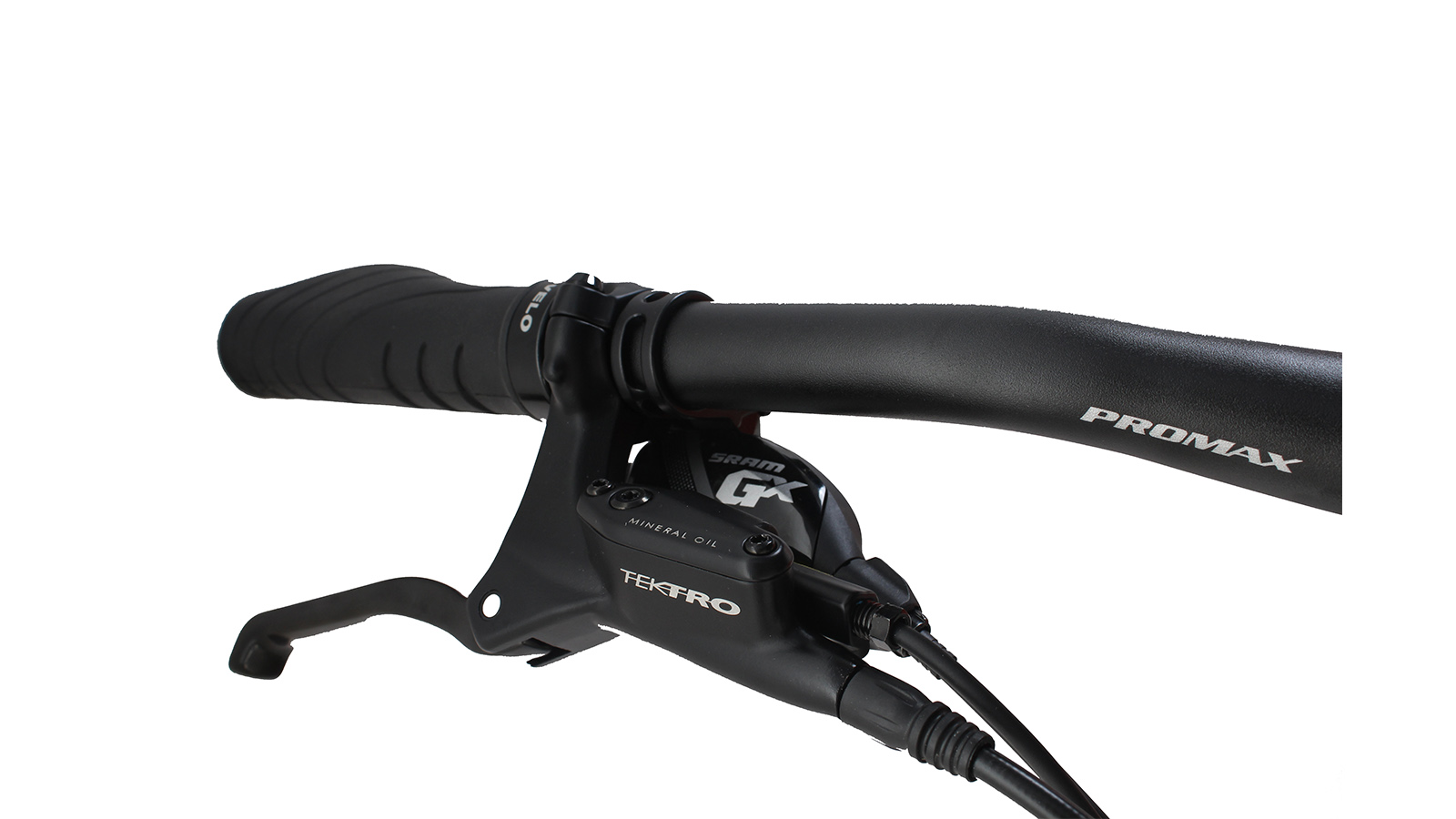

Sus Fork and Brake
We have equipped C7M with Suntour NEX suspension fork and Tektro hydraulic disc brake.When encountering bumpy road surface, the shock absorber can reduce the vibration and the huge impact brought by the road surface, also the hydeaulic disc brake can provide fast braking,so that the rider can get a better riding experience and security.
