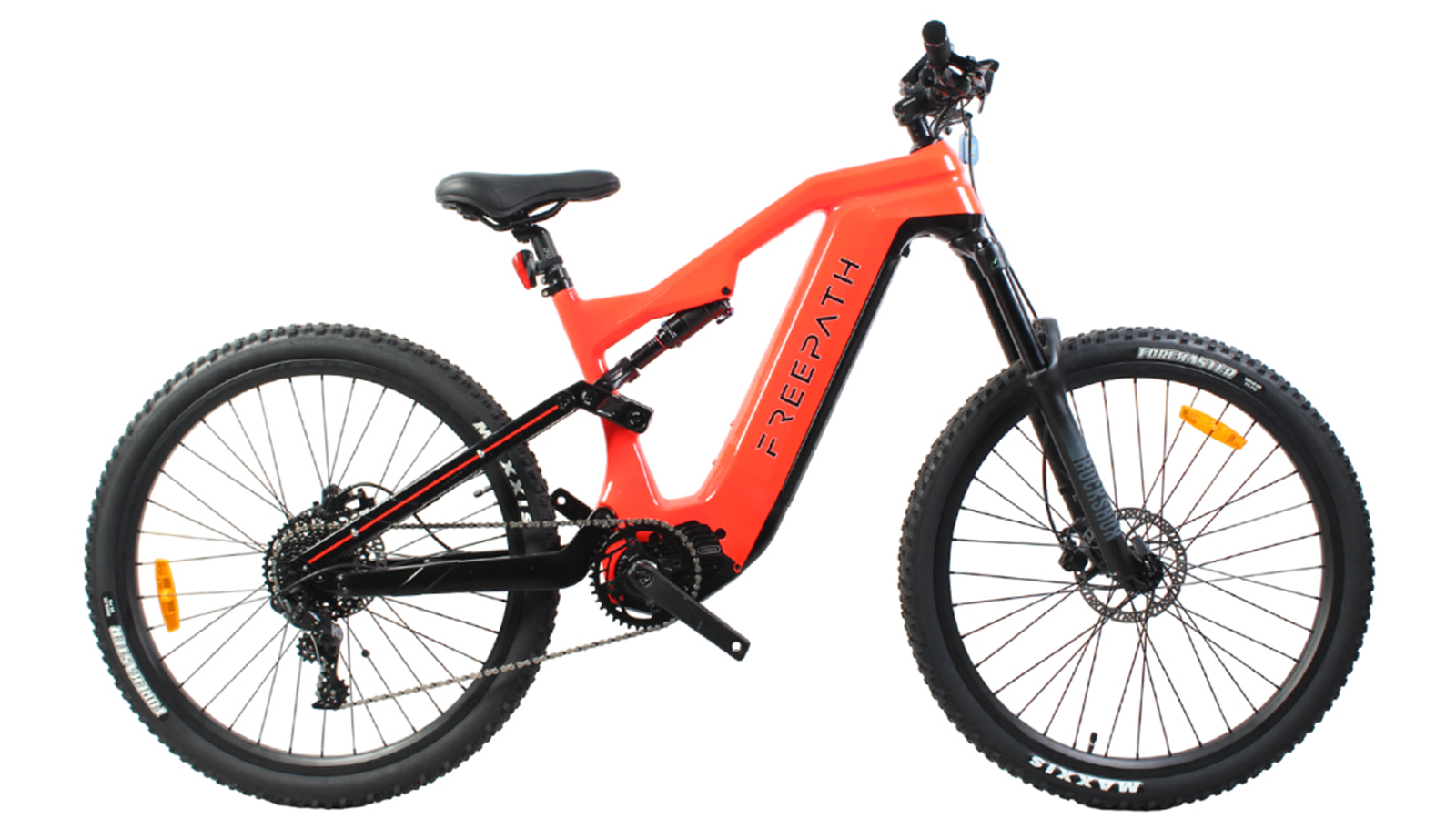

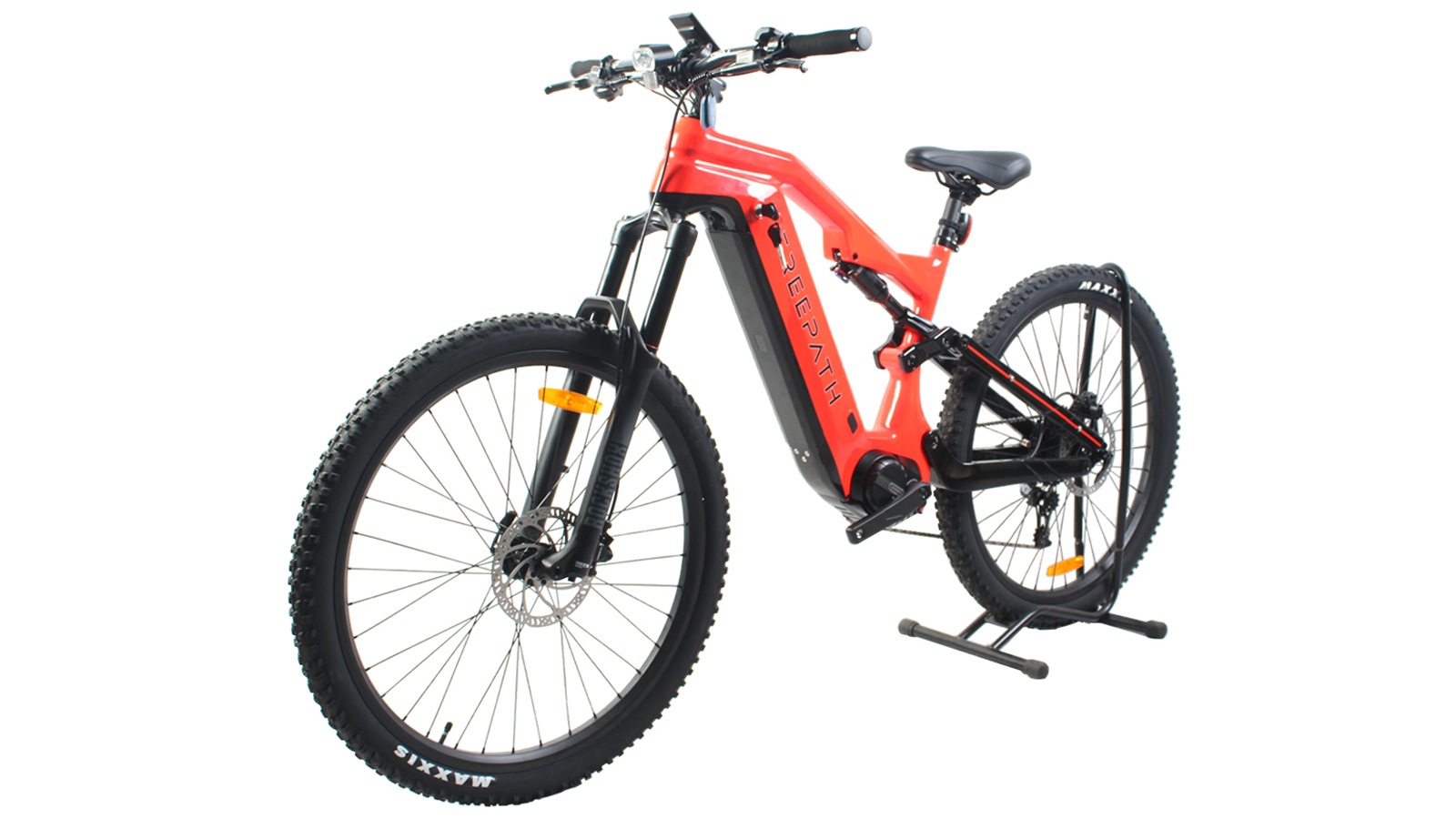

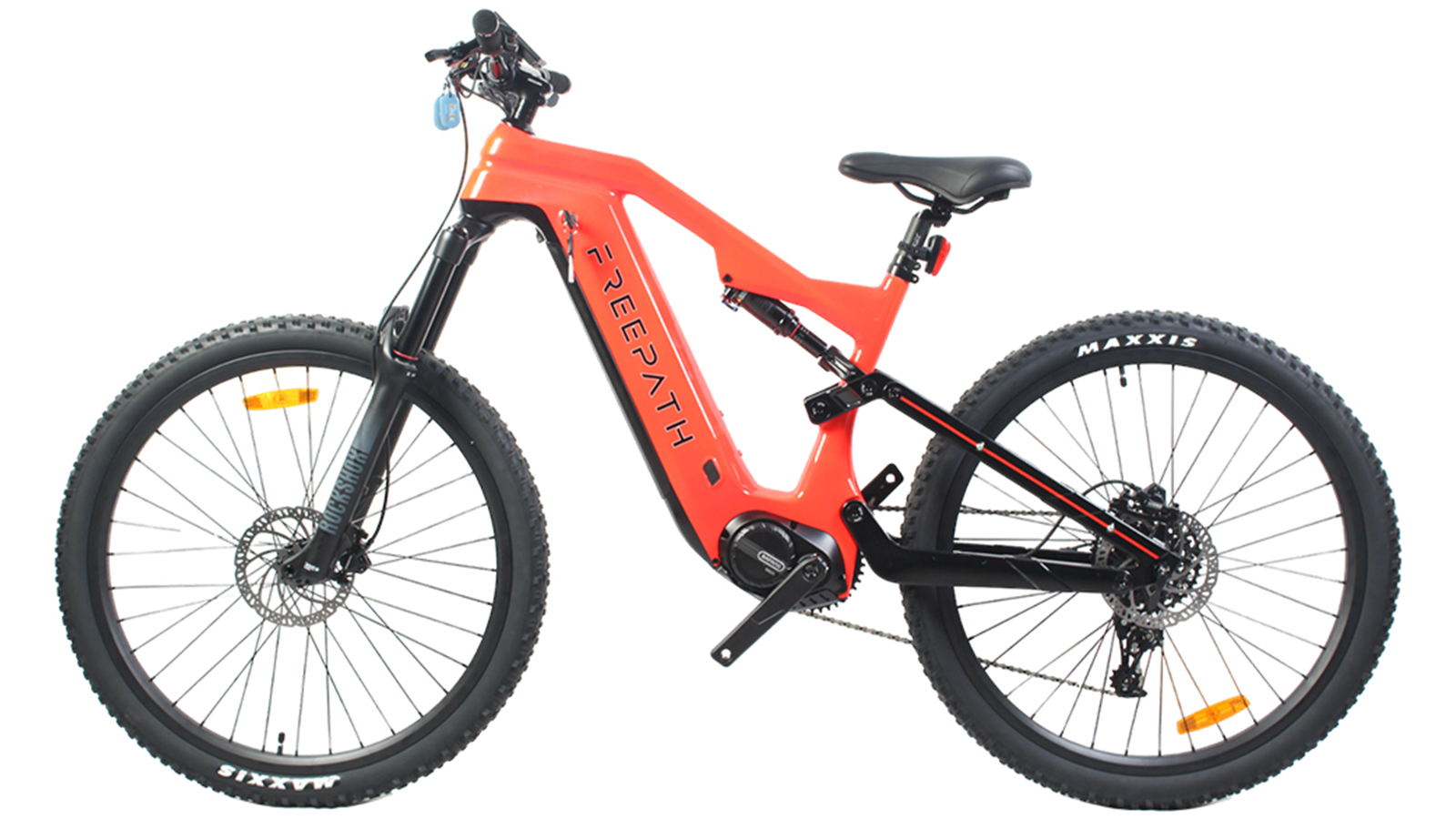

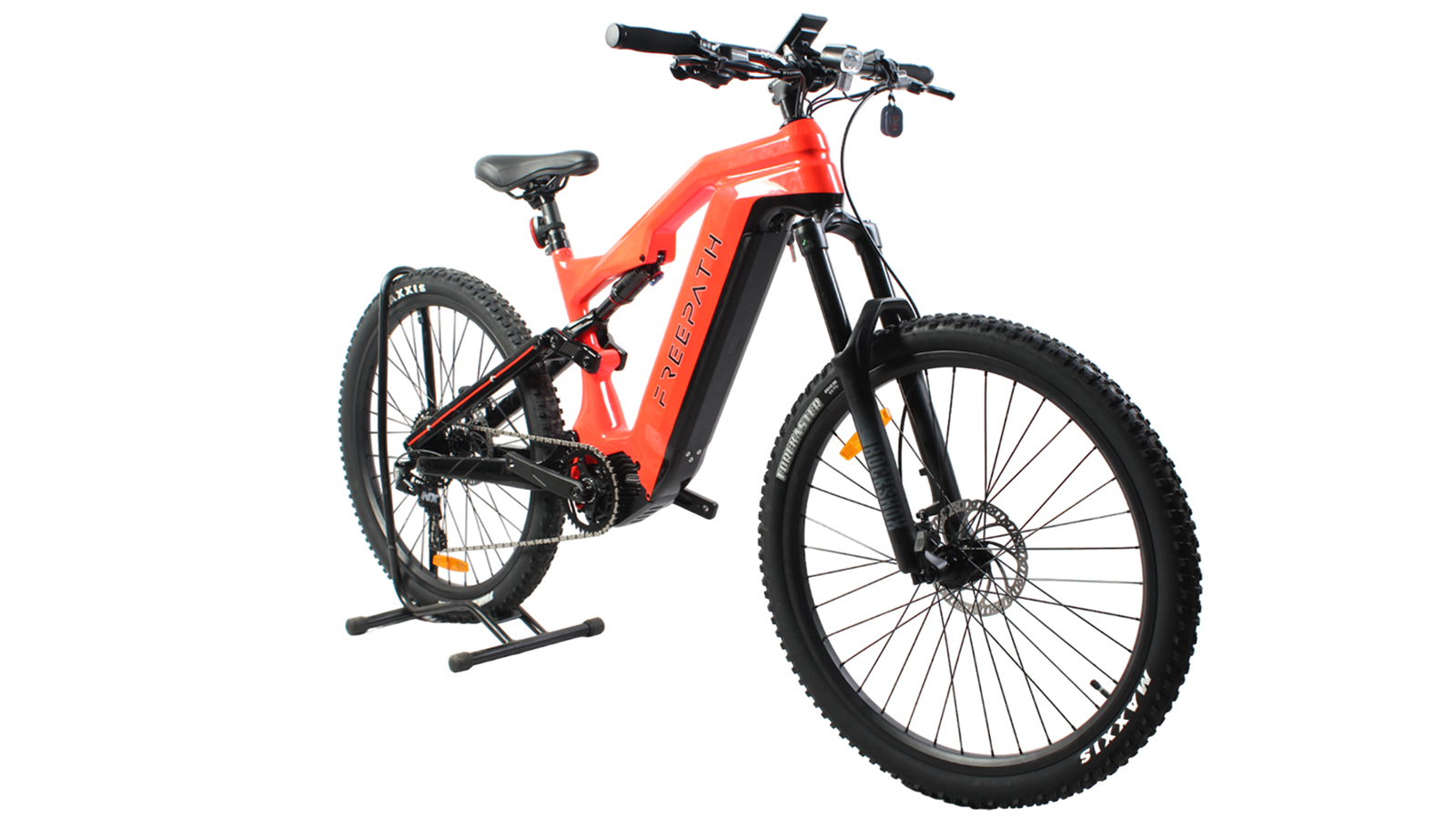

Full suspension 48V 500w carbon fiber electric mountain bike
The perfect combination of practicalutility and ideal innovation.
Built to accommodate a generous rangeof rider heights and sizes.
Safety features for supporting precious cargo and peace of mind.
48V500W mid drive motor
The full suspension carbon fiber mountain bike is driven by Bafang M600 48V 500W mid drive motor. This motor’s peak torque is 140N.m, which ensures that the cyclist can ride easily even on rough mountain roads or trails.
Sram 11-spd Derailleur
Sram 11 speed provides more gear choices for the rider. When facing different road conditions, the rider can adjust the gear to ride calmly.
Display and handlebar
The colourful dIsplay shows all the necessary information; here you can also select your individiual support.The brake levers and the comfortable “carbon fiber” handlebar are sporty and still comfortable to ride!
Specifications
| Model No. | E23 | Color | Orange & Customizable |
| Electric System | |||
| Motor | Bafang 48V500W M600 mid motor | Battery | 48V20AH lithium battery(SAMSUNG cells) |
| Controller | Intelligent controller | Display | Bafang DPC18 Color display |
| PAS Sensor | Torque sensor & Speed sensor | Throttle | Thumb Throttle |
| Charger | 3A, 110-240V applied | ||
| Main Components | |||
| Frame | Carbon fiber | Fork | Rockshox 35 suspension fork with lockout |
| Handlebar | Carbon Fiber 720mm Handlebar | Stem | Promax MA-400, 28.6*31.8*ext 90mm |
| Brake | F/R Tektro E350 hydraulic disc brake with 180mm rotor | Brake Lever | Alu alloy |
| Tyre | MAXXIS FOREKASTER 29″*2.35 | Rim | Double Wall Rim |
| Spoke | Stainless Steel | Light | Head Light |
| Chainwheel | BaFang, Steel | Crank | BaFang, Alu alloy |
| Chain | KMC X11 Chain | Gear | Sram NX 11-SPD |
| Shift Lever | Thumb Type | Kickstand | W/O |
| Saddle | VELO | Grip | VELO |
| Pedal | WELLGO | Rack | W/O |
| Performance | |||
| Range | 80-100km | Charging Time | 6-7h |
| Max. Load | 120kg | Max. Speed | 55km/h |
| Warranty | 1 year for the whole piece |
