Model No.E10Color Customizable
Electric System
MotorBafang 48V500W M600 mid motorBattery48V15AH lithium battery(LG cells)
ControllerBafang M600 integrated controllerDisplayAPT 860C IPS Color display
PAS SensorTorque sensor & Speed sensorThrottlethumb throttle
Charger48V3A, 110-240 Applied
Main Components
FrameAlu alloy 6061ForkRST Alpha Suspension fork alu alloy
HandlebarPromax HB-3018StemPromax MA-274
BrakeTektro E350 hydraulic disc brake Brake LeverAlu alloy
TyreKENDA 29”*2.2RimDouble Wall Rim
SpokeStainless SteelLightHead Light and rear light
ChainwheelBafang 40T with plastic coverCrank170mm crank
ChainKMC X9GearShimano 9-SPD
Shift LeverThumb typeKickstandAluminum
SaddleSR LOOKIN BASIC -A229UR0  Gel saddleGripVELO,black
PedalK303,black with reflectorRackAlu alloy 6061
Range30-50kmCharging Time3-6h
Max. Load120kgMax. Speed35km/h
Warranty1 year for the whole piece

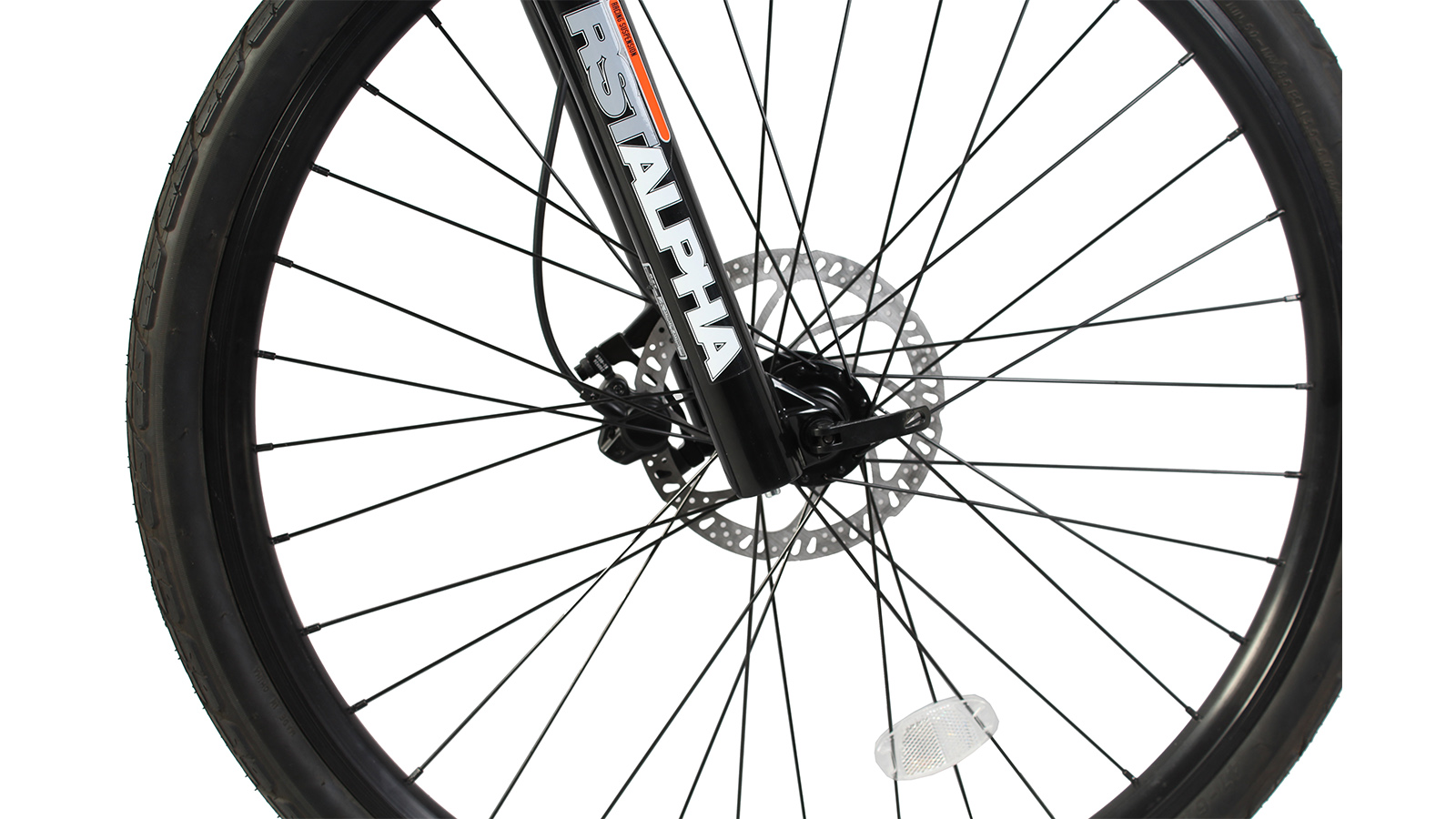

RST Alpha Suspension Fork

When encountering bumpy road surface, the shock absorber can reduce the vibration and the huge impact brought by the road surface, so that the rider can get a better riding experience.

Gel Saddle

The gel saddle make rider more comfortable in long time cycling.

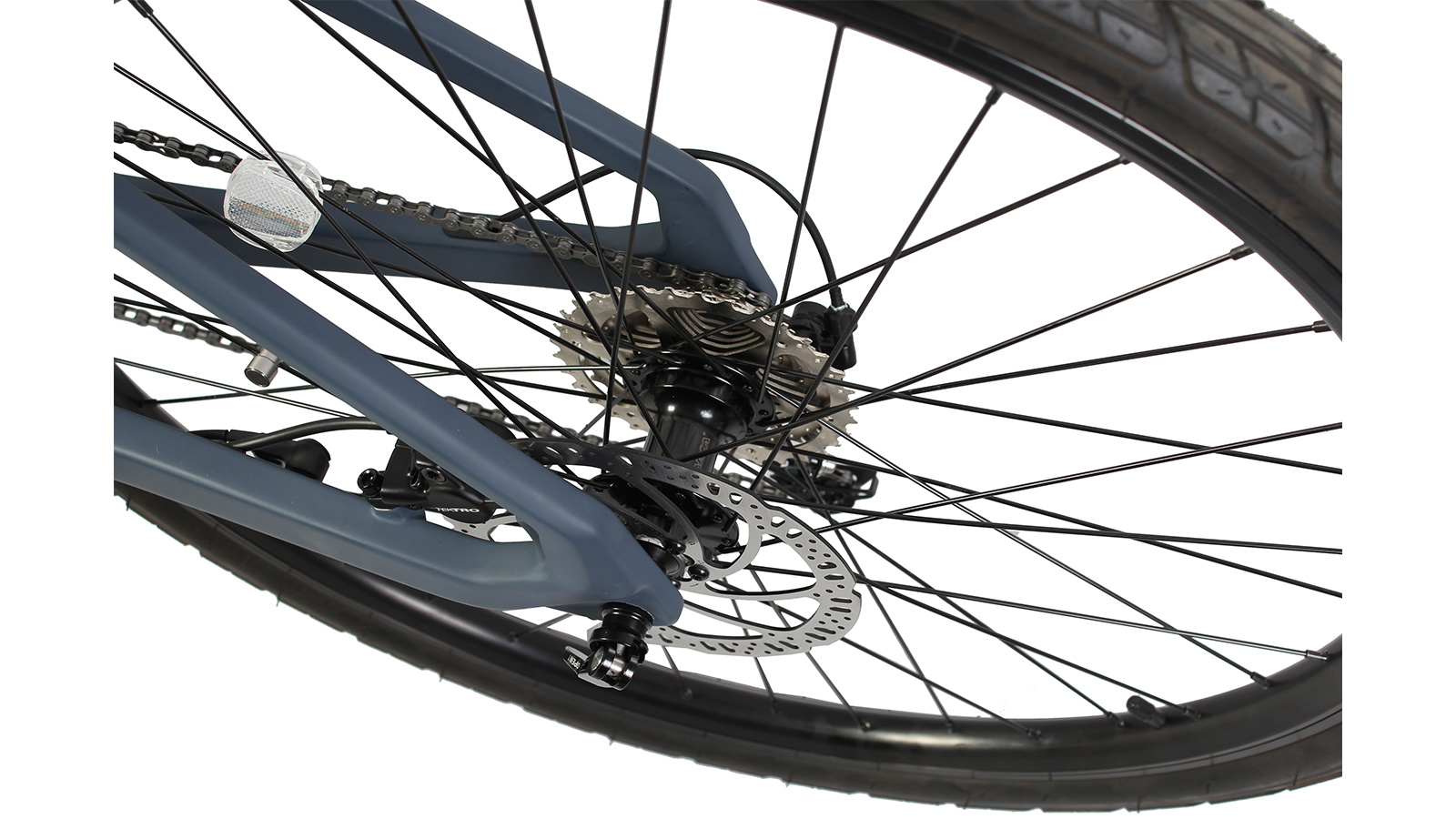

Shimano 9-SPD

Shimano 9-SPD provides more gear choices for the rider. When facing different road conditions, the rider can adjust the gear to ride calmly.
