SPECIFICATIONS
| Model No. | B15 | Color | Camouflage & Customizable |
| Electric System | |||
| Motor | Bafang BBS02 48V750W mid motor | Battery | 48V 15Ah lithium battery(LG cells) |
| Controller | Intelligent controller | Display | Bafang C965 LCD Display |
| PAS Sensor | 12 magnet cadence sensor | Throttle | Thumb Throttle |
| Charger | 3A, 110-240V applied | ||
| Main Components | |||
| Frame | Alu alloy | Fork | Alloy regid fork |
| Handlebar | Promax HB-3018 | Stem | Promax MA-400 |
| Brake | F&R Tektro mechanical disc brake | Brake Lever | Alu alloy |
| Tyre | Kenda 26”*4.0 | Rim | Double Wall Rim |
| Spoke | Stainless Steel | Light | No |
| Chainwheel | Bafang 46T | Crank | Bafang, 170mm |
| Chain | KMC Z7 | Gear | Shimano 7-spd |
| Shift Lever | Thumb Type | Kickstand | Alu alloy/ Steel |
| Saddle | Velo VL-3362A snow fat type | Grip | |
| Pedal | Wellgo,black | Rack | No |
| Performance | |||
| Range | 31-60km | Charging Time | 3-6h |
| Max. Load | 150kg | Max. Speed | 50km/h |
| Warranty | 1 year for the whole piece |
LCD Display
We have equipped the B15 with the Bafang C965 LCD display. It has ergonomic external buttons and is comfortable to operate. It provides speed display, mileage, fault indication, smart battery indication and brake alert.

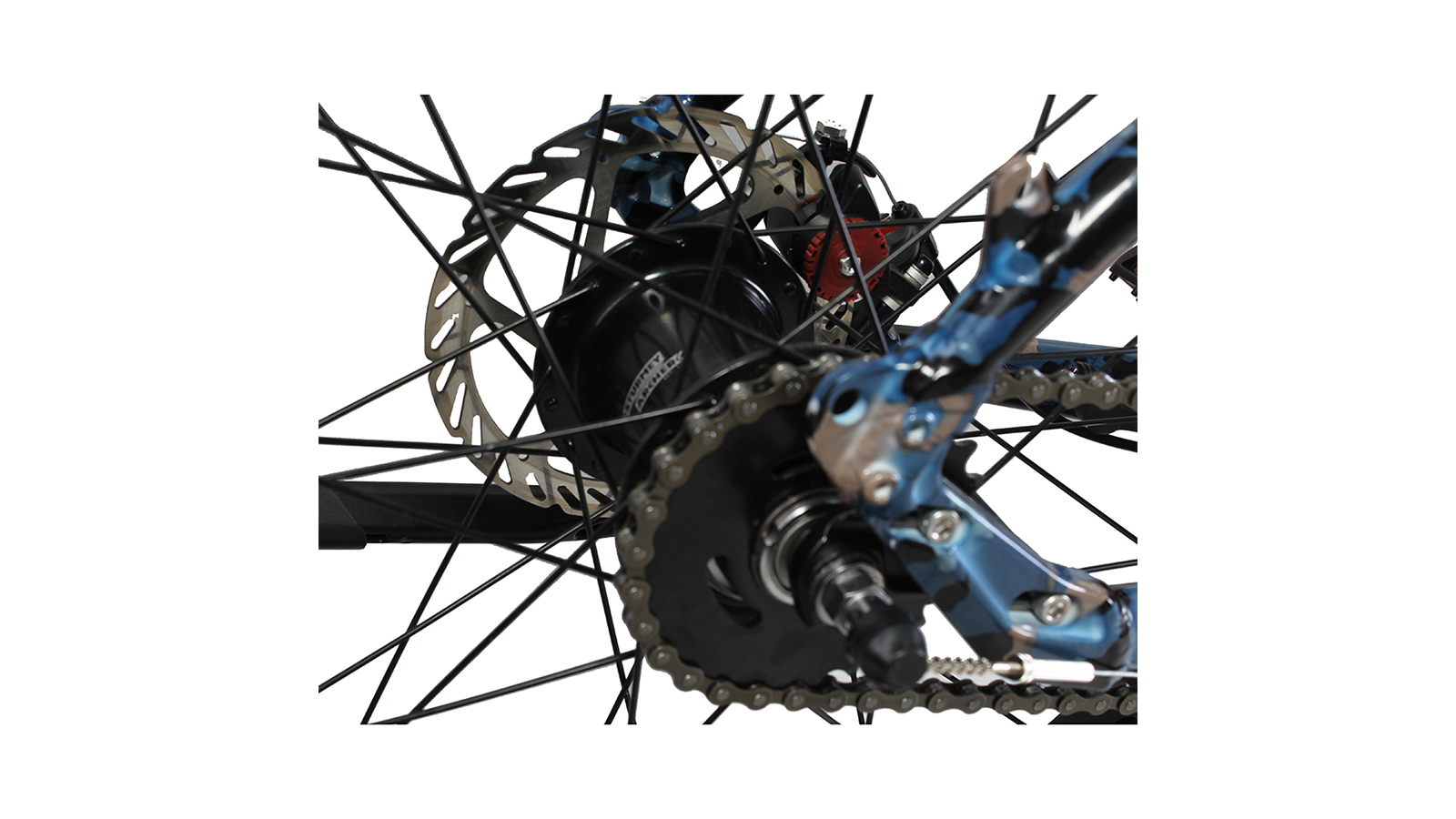

F&R Tektro Disc Brake
Tektro MD-M300 mechanical disc brake,with cable actuated mechanical disc brake,actuated with liner pull brake levers.Excellent braking for you at all times
Bafang BBS02 mid motor
This ebike works with Bafang BBS02 48V 750W mid motor,can provide plenty of power for your ride.As a brushless motor it has a fast response time, high starting torque and low maintenance costs.This powerful motor provides you with great power on uphill for an excellent riding experience.
