SPECIFICATION
| Model No. | B1 | Color | Black & Customizable |
| Electric System | |||
| Motor | 48V1000W Bafang M620 mid motor | Battery | 48V15AH lithium battery(LG cells) |
| Controller | Bafang M620 integrated controller | Display | C965 LCD Display |
| PAS Sensor | Bafang torque sensor&Speed sensor | Throttle | thumb throttle |
| Charger | 48V3A, 110-240 Applied | ||
| Main Components | |||
| Frame | Alu alloy 6061 | Fork | RST Guide suspension fork |
| Handlebar | Promax HB-3018 | Stem | Promax MA-400 |
| Brake | F&R Tektro hydraulic disc brake | Brake Lever | Alu alloy |
| Tyre | CST 26”*4.8 | Rim | Double Wall Rim |

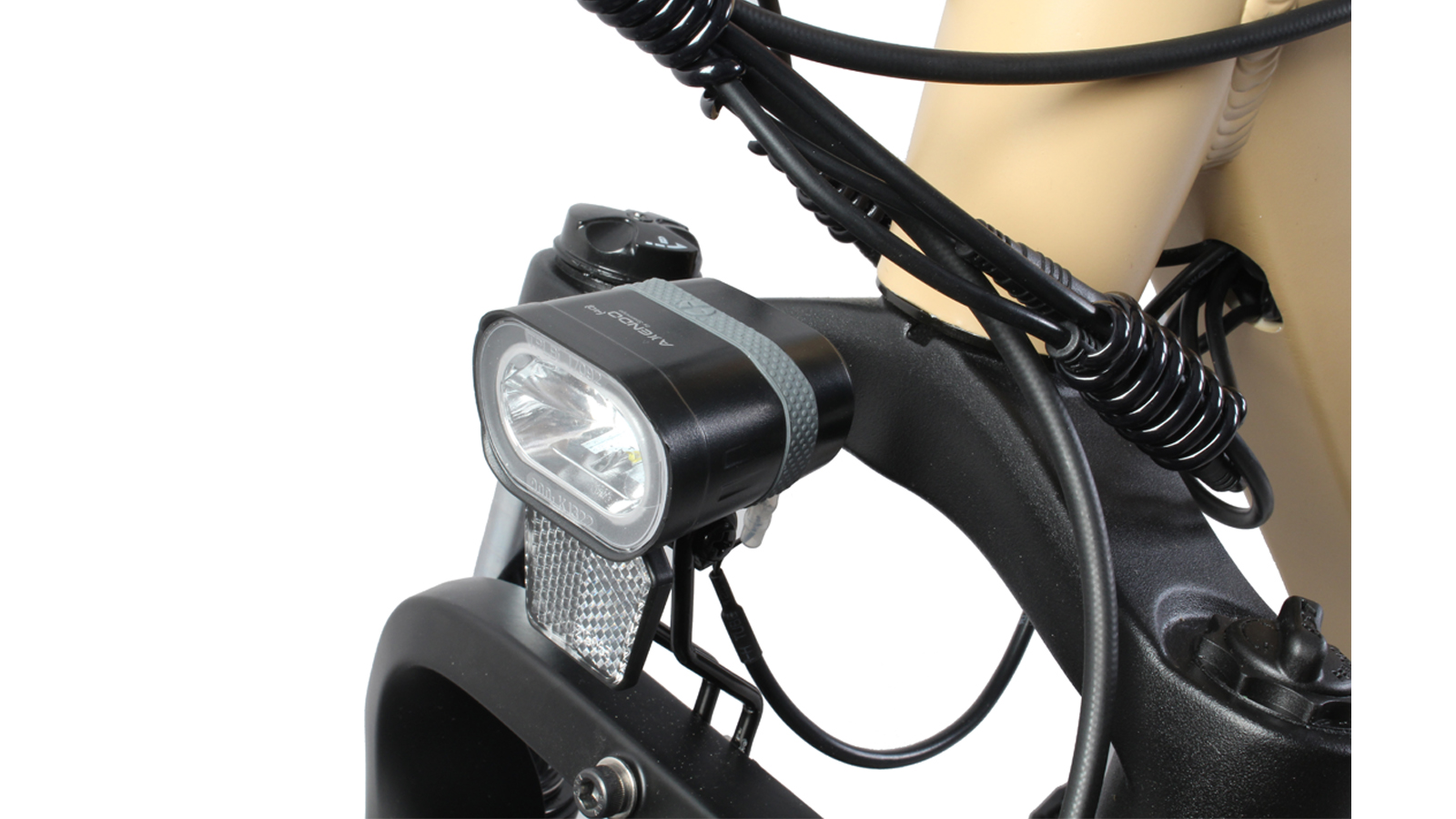

| Spoke | Stainless Steel | Light | Head Light&rear light |
| Chainwheel | Bafang 40T | Crank | Bafang, Alu alloy,170mm |
| Chain | KMC X9 | Gear | Shimano Alivio 9-spd |
| Shift Lever | Thumb Type | Kickstand | Alu alloy/ Steel |
| Saddle | Velo VL-6220 mountain type | Grip | VELO,VLG-1389D3,black |
| Pedal | WELLGO,black with reflectors | Rack | No |
| Performance | |||
| Range | 31-60km | Charging Time | 3-5h |
| Max. Load | 150kg | Max. Speed | 45km/h |
| Warranty | 1 year for the whole piece |
Bafang M620 Motor
This ebike works with Bafang M620 48V 1000w mid motor,can provide plenty of power for your ride.As a brushless motor it has a fast response time, high starting torque and low maintenance costs.This powerful motor provides you with great power on uphill for an excellent riding experience.
Colorful Display
B11 model is equipped with an LCD colourful display suitable for the bafang motor protocol.This Human Machine Interface (HMI) from Octagon features a high-contrast LCD screen with all important information at a glance, making it easy to read data even in direct sunlight.
Shimano Alivio 9-spd
The Shimano Alivio 9 speed trigger shifters offer reliable gear changes, it provides smooth shifting during our rides, allowing us to adjust the speed gears for uphill and downhill and our rides will be easier.
