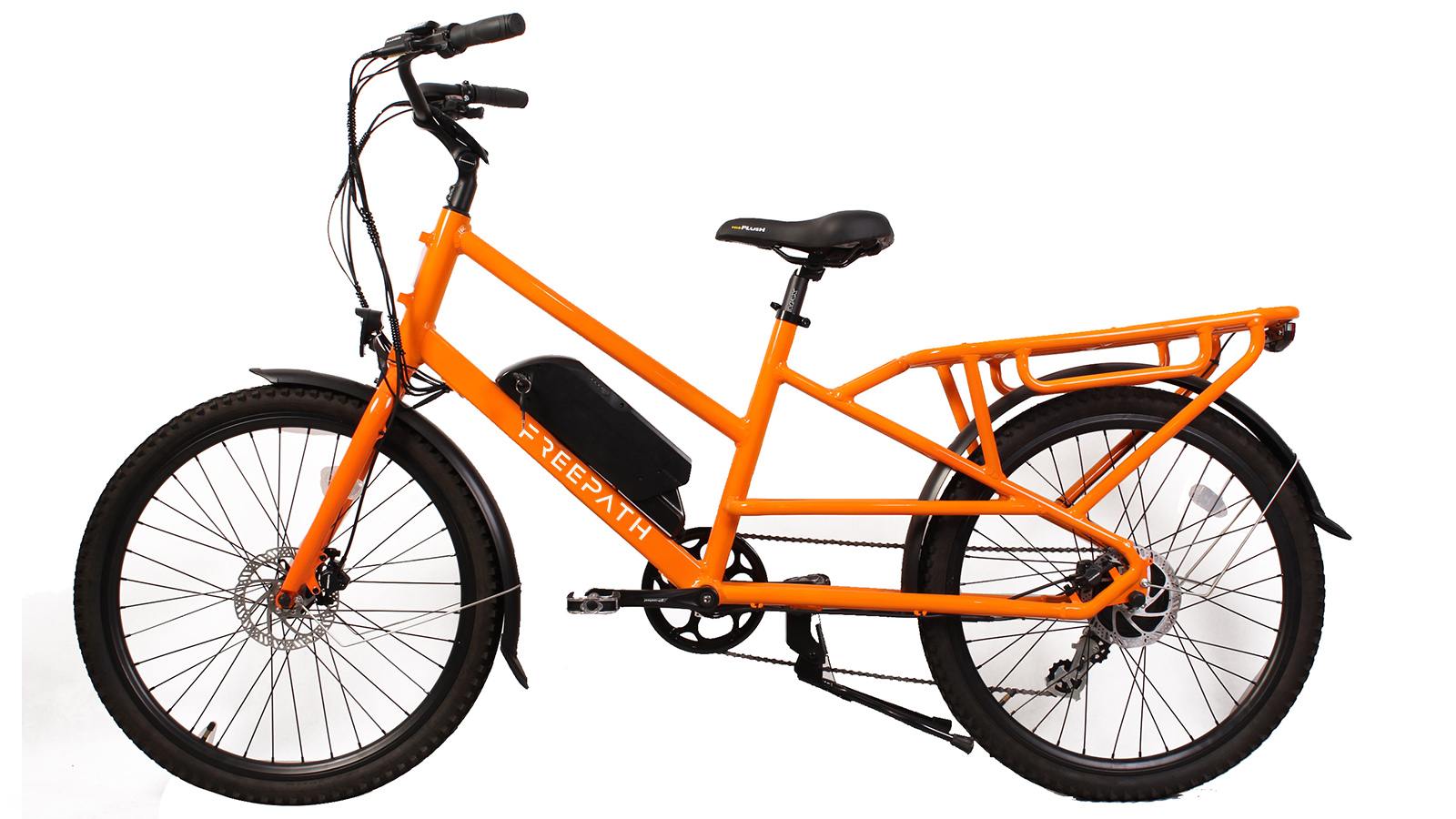

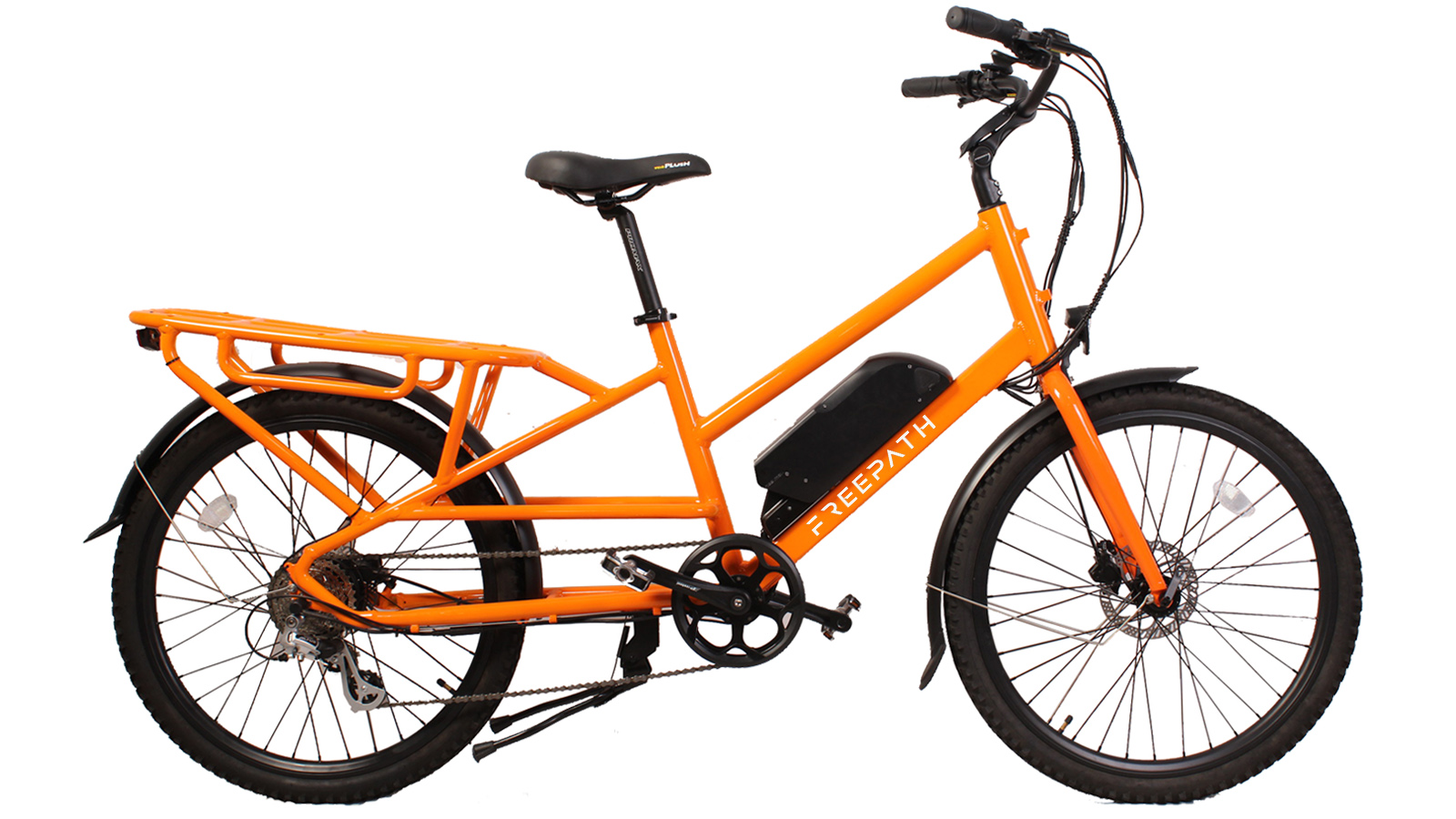

Model No.M14Color Black and Customizable
Electric System
MotorLAX 48V500W rear wheel hub motorBattery48V13AH lithium battery (Chinese cells)
Controller48V20ADisplayLCD display
PAS Sensor12 magnet cadence sensorThrottlethumb throttle
Charger48V2A, 110-240 Applied
Main Components
FrameAlu alloy 6061ForkAlu alloy regid fork
HandlebarPromax HB-T320 city typeStemPromax MQ-525
BrakeTektro M300 mechanical disc brake Brake LeverAlu alloy
TyreKENDA 26”*2.1RimDouble Wall Rim
SpokeStainless SteelLightHead Light and rear light
ChainwheelProwheel 46T with 170MM crankCrank170MM crank
ChainKMC Z7GearShimano 7-spd
Shift LeverThumb typeKickstandAluminum
SaddleVelo VL-6322 mountain type GripHL-G331,black
PedalYH-37X,black with reflectorRackalu alloy
Range30-50kmCharging Time3-6h
Max. Load120kgMax. Speed35km/h
Warranty1 year for the whole piece

Head light

With head light,the riders can see more clearly at night. It provides various riding experience and suits different environment.

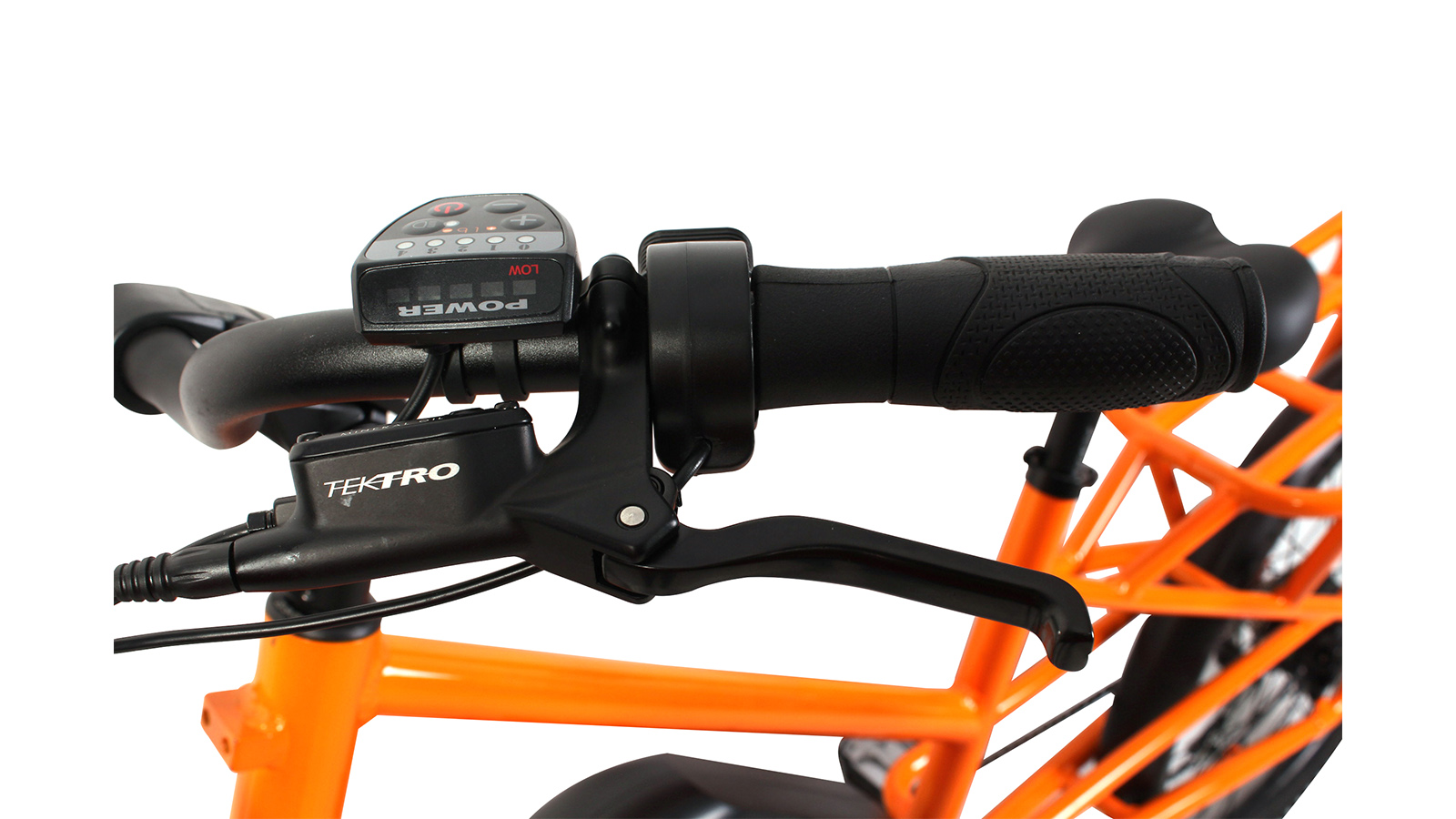

Shimano Altus 7-spd

The Shimano Tourney 7 speed trigger shifters offer reliable gear changes, allowing you to keep your rides efficient and smooth.

Lithium battery

The 48V13AH lithium battery greatly improves the range of riding and adds more riding experience.
