SPECIFICATIONS
| Model No. | S5 | Color | Customizable |
| Electric System | |||
| Motor | Bafang 48V500W rear wheel hub motor | Battery | 48V12.5AH lithium battery(Chinese cells) |

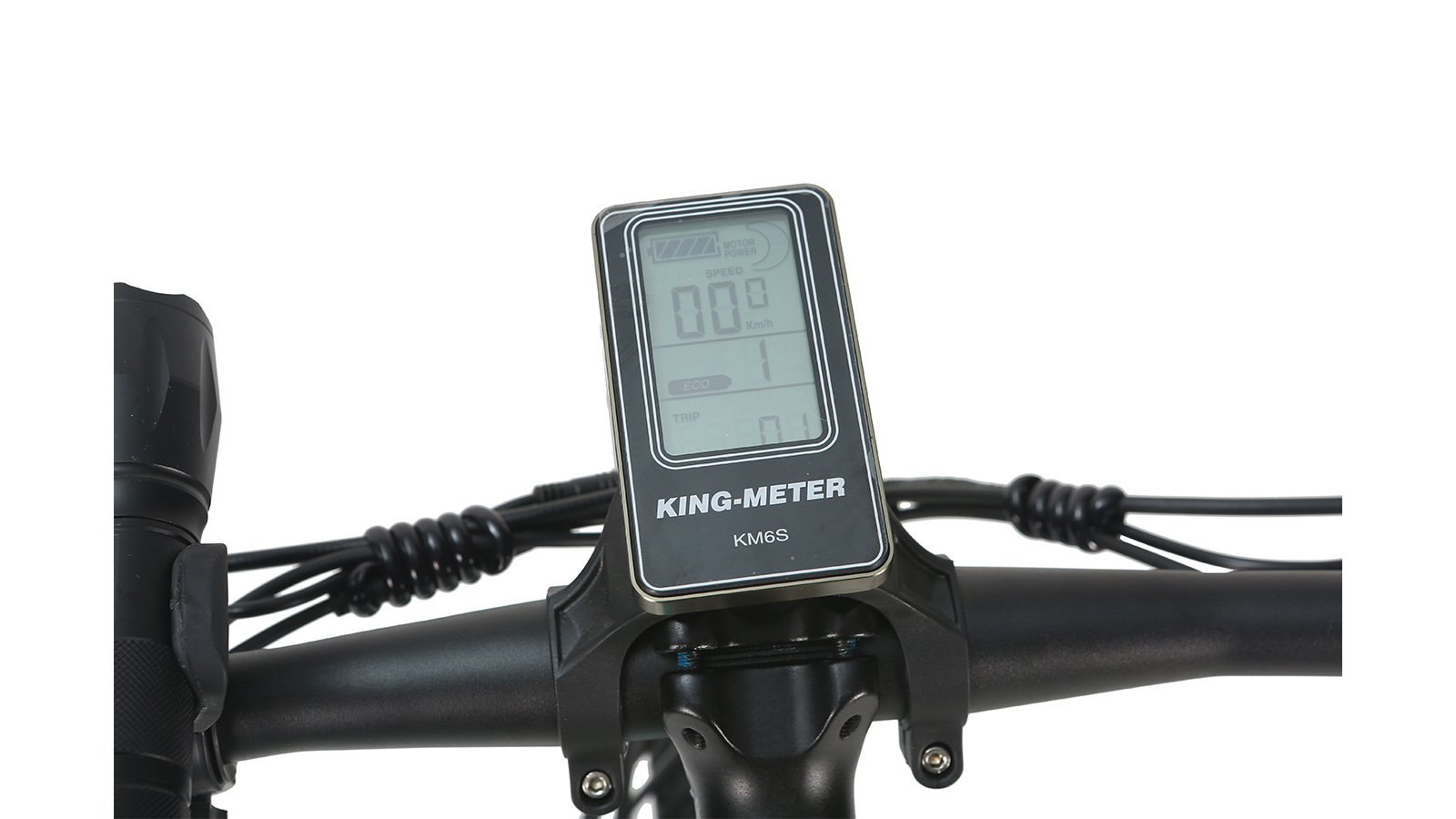

| Controller | Intelligent controller 48V20A | Display | LCD display |
| PAS Sensor | 12 magnet cadence sensor | Throttle | thumb throttle |
| Charger | 48V2A, 110-240 Applied | ||
| Main Components | |||
| Frame | Alu alloy 6061 | Fork | steel regid fork |
| Handlebar | Promax HB-3203 | Stem | Promax MQ-525 |
| Brake | Tektro M300 mechanical disc brake | Brake Lever | Alu alloy |
| Tyre | Kenda 26*2.125” | Rim | Double Wall Rim |
| Spoke | Stainless Steel | Light | Head Light and rear light |
| Chainwheel | Prowheel 46T with plastic cover | Crank | 170mm, Alu alloy |
| Chain | KMC Z7 | Gear | Shimano TZ 7-spd |
| Shift Lever | Thumb Type | Kickstand | Alu alloy/ Steel |
| Saddle | fat beach cruiser type saddle | Grip | HL-G311-1A,130mm,black |
| Pedal | YH-37X,black with reflector | Rack | W/O |
| Performance | |||
| Range | 25-30km | Charging Time | 3-6h |
| Max. Load | 100kg | Max. Speed | 35km/h |
| Warranty | 1 year for the whole piece |
Tektro Disc brake
The high performance of the disc brake greatly improves the safety of braking in case of riding on mountain.Disc brake still has a relatively good performance in a variety of complex conditions (rain, snow, mud road).
Prowheel 46T Chainwheel
To achieve a better transmission, we have fitted the S3 with Prowheel chainwheel and crank to give you a comfortable drive when pedalling.
Shimano 7 speed Derailleur
The derailleur allows for fast and smooth shifting, making it possible to adjust the gears for shifting smoothly at any time during your ride. Offering a comfortable ride for you.
