Model No.M14Color Black and Customizable
Electric System
MotorBafang 48V500W rear wheel hub motorBattery48V12.5AH lithium battery(Chinese cells)
Controller48V20ADisplayLCD display
PAS Sensor12 magnet cadence sensorThrottlethumb throttle
Charger48V2A, 110-240 Applied
Main Components
FrameAlu alloy 6061ForkZoom suspension fork
HandlebarPromax HB-3018 StemPromax MA-400
BrakeTektro M300 mechanical disc brake Brake LeverAlu alloy
TyreKenda 26*1.95”RimDouble Wall Rim
SpokeStainless SteelLightHead Light and rear light
ChainwheelProwheel 46T with plastic coverCrankAlu alloy
ChainKMC Z7GearShimano Altus 7-spd
Shift LeverThumb typeKickstandAluminum
SaddleVelo VL-8030 mountain typeGripHL-G331,black
PedalYH-44X,black with reflectorRackNO
Range30-50kmCharging Time3-6h
Max. Load120kgMax. Speed35km/h
Warranty1 year for the whole piece

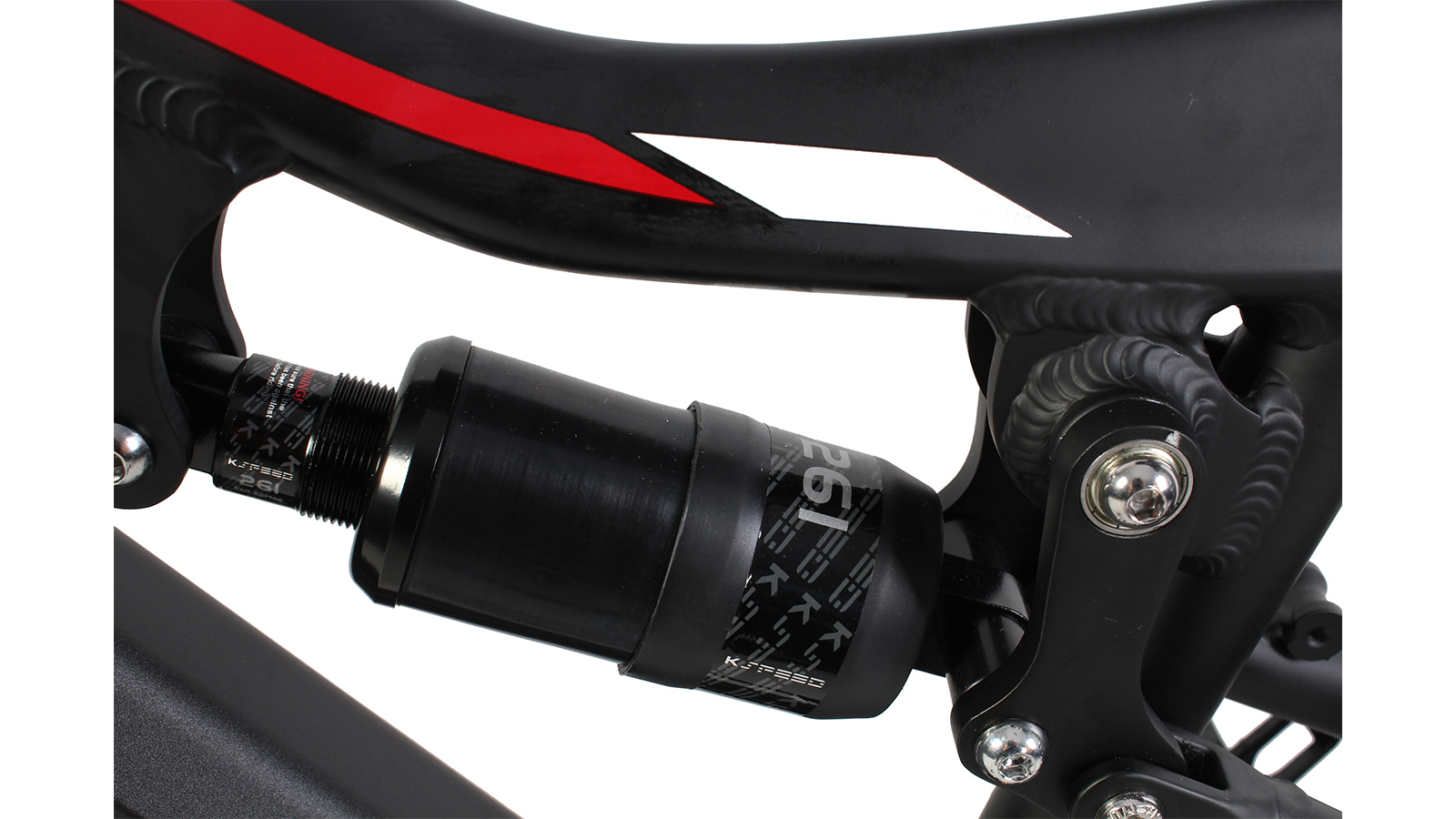

Air suspension shock

When encountering bumpy road surface, the shock absorber can reduce the vibration and the huge impact brought by the road surface, so that the rider can get a better riding experience

Shimano Altus 7-spd Gear

The Shimano Altus 7-spd provides more gear choices for the rider. When facing different road conditions, the rider can adjust the gear to ride calmly.

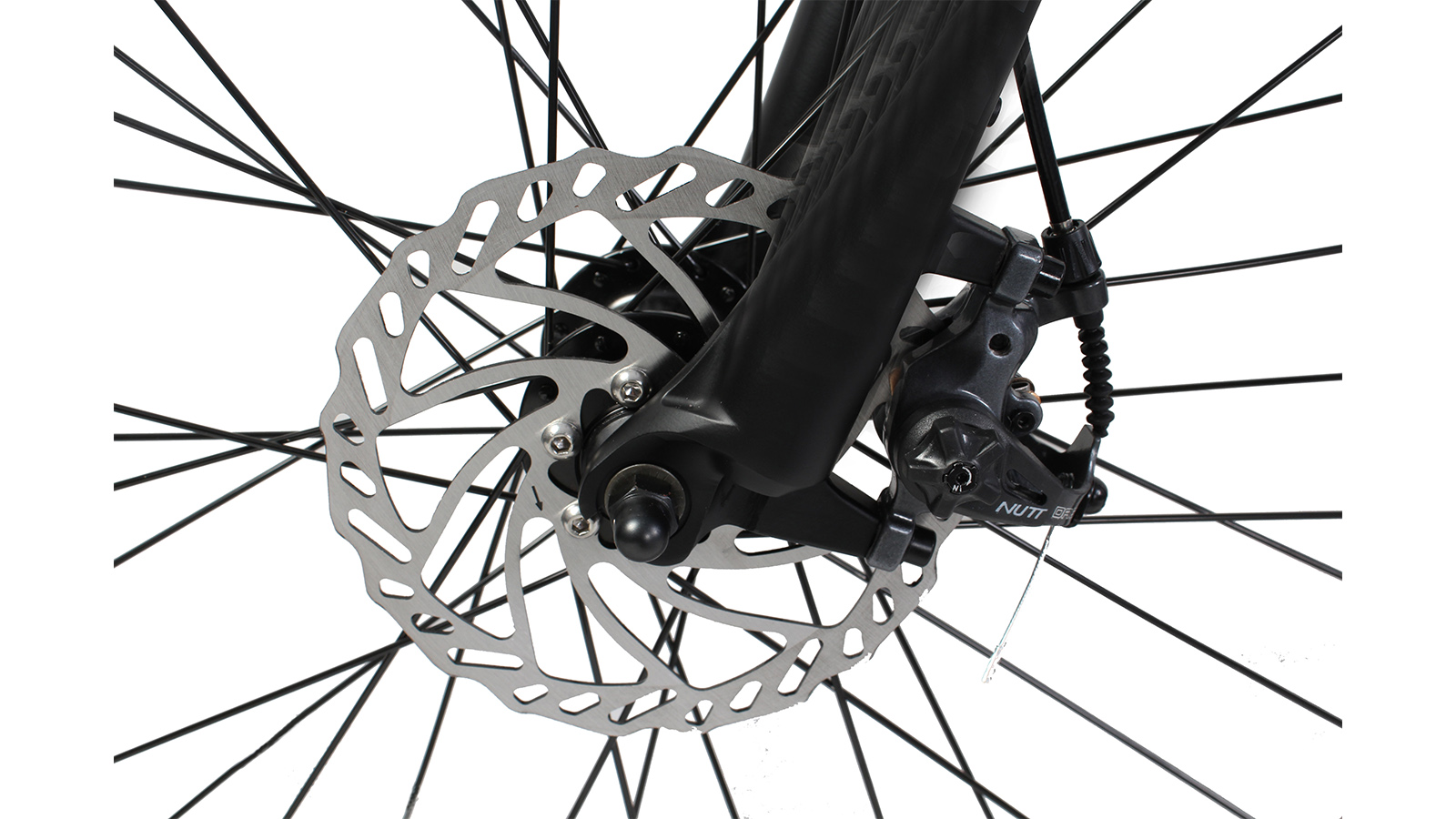

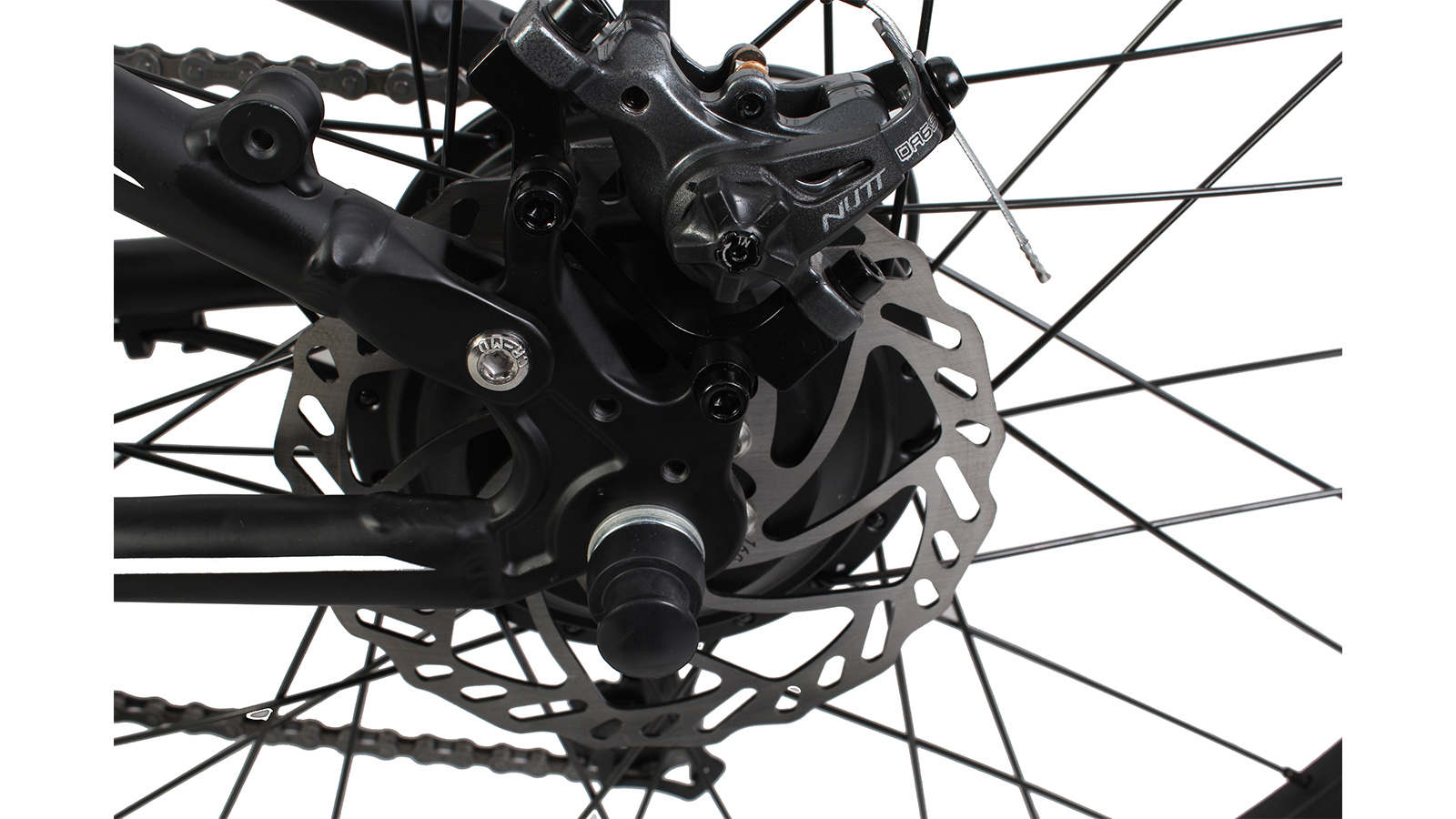

Tektro mechanical disc brake

The high performance of the disc brake greatly improves the safety of braking in case of riding on mountain.Disc brake in a variety of complex conditions (rain, snow, mud road) still has a relatively good performance.
