| Model No. | EC1 | Color | Black or Customized |
| Electric System | |||
| Motor | Aikema 36V250W mini hub motor | Charger | 42V2A, 110-240V applied |
| Battery | 36V10AH Removable Lithium Battery with Samsung 5000mAh Cells | PAS | TS-01 torque sensor |
| Controller | 36V15A intelligent controller | Throttle | W/O |

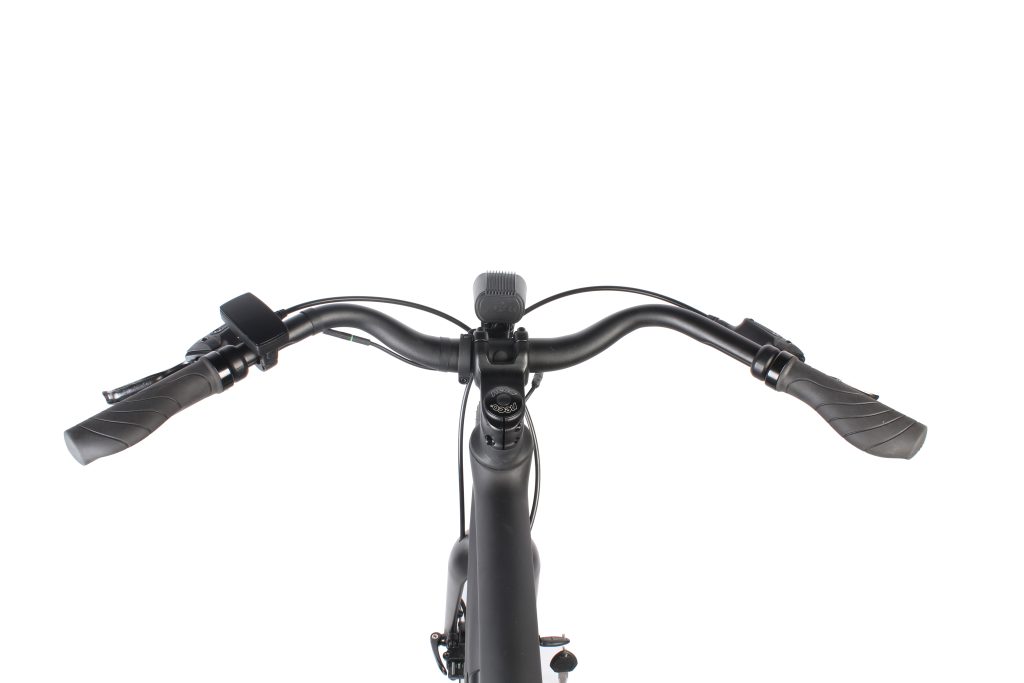

| Display | LCD display(middle mounted) | ||
| Main Components | |||
| Frame | Carbon fiber | Saddle | Mtb type soft saddle |
| Front Fork | Carbon Fiber Rigid Fork | Pedal | Wellgo C246DU, light weight |
| Rims | Double wall, aluminum alloy, 36H*13G | Stem | Zoom |
| Tires | KENDA K193 700C*33C with inner tube, anti-puncture | Brake Levers | Tektro brake lever, alu alloy |
| Brake | FF/R Tektro HD-M275 hydraulic disc brake with 160mm rotor (dual-piston) | Crankset | Gates 55T with 170mm crank |
| Speed Shifter Lever | W/O | Chain | Gates Gates carbon belt 11M-122T-12CT BLACK CDN |
| Rear Derailleur | W/O | Spoke | Stainless steel |
| Seat post | carbon fiber, 27.2*305mm | ||
| Performance | |||
| Max Speed | 25-30 km/h | Charging Time & Life | 4-5 Hours, >900 Cycles |
| Range per charge | 50-80km by PAS | Warranty | 1 year for electronic parts, 2 year for the frame |
| Loading Capacity | 120kg |

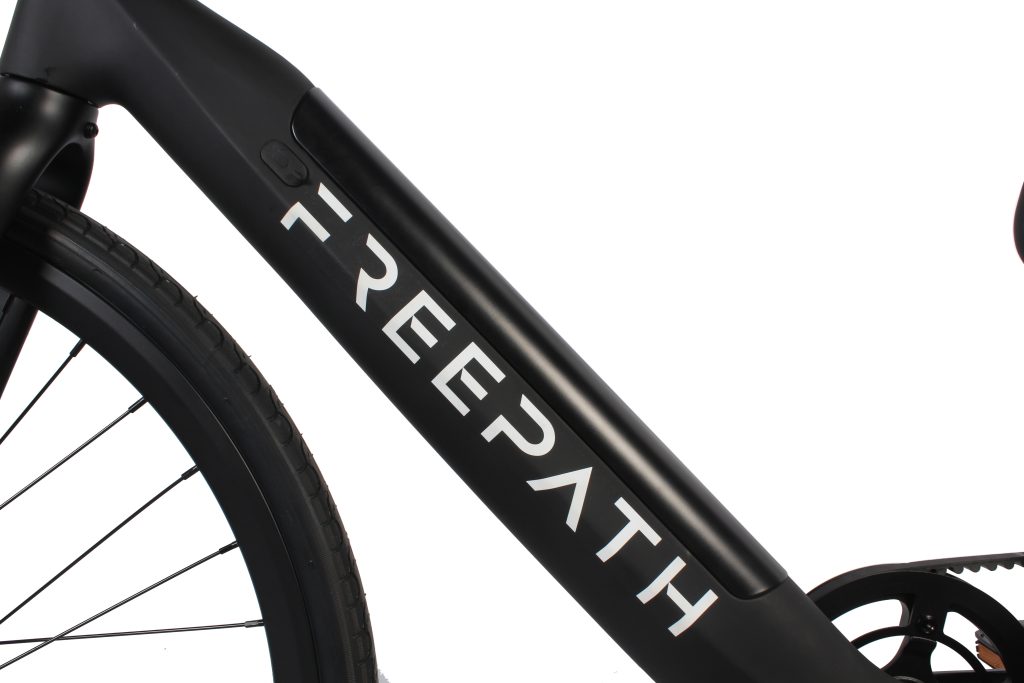

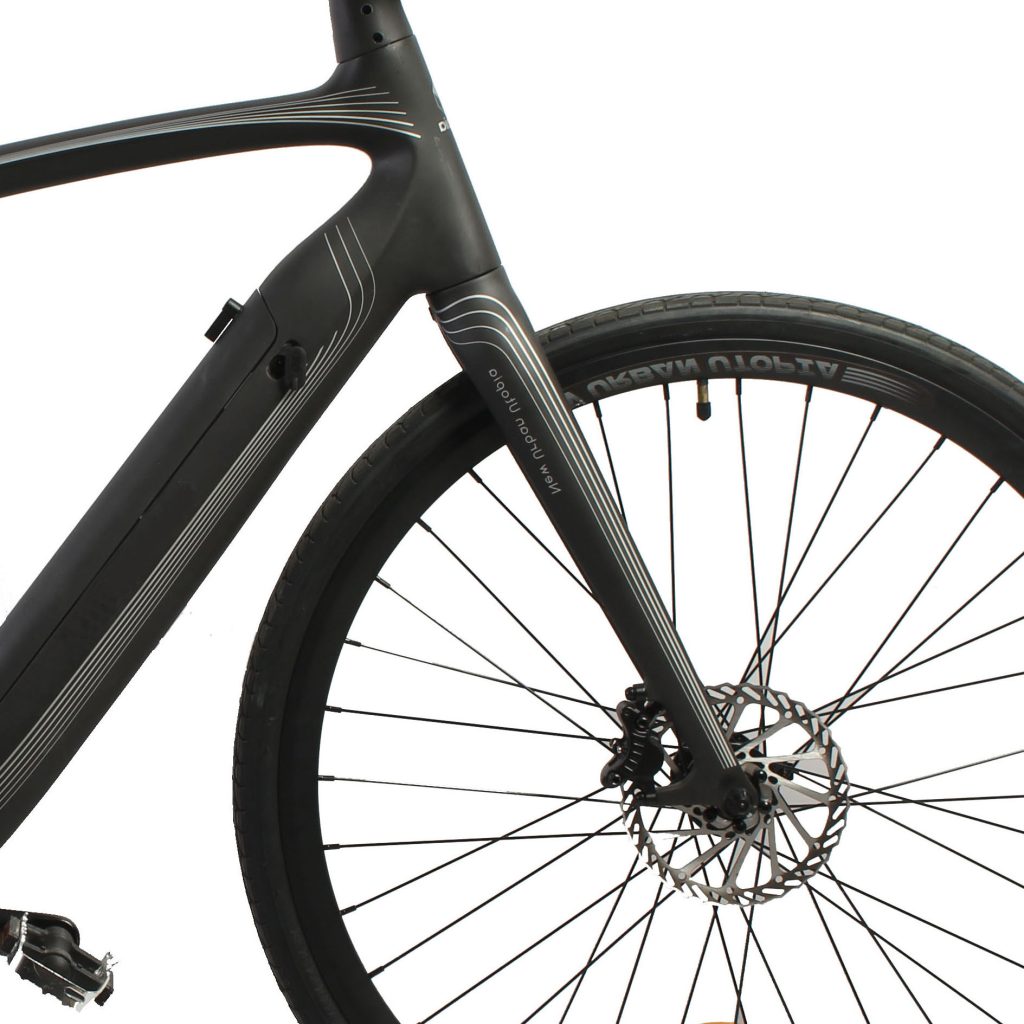

Fork and baterry
The carbon fiber fork offer a Lightweight . And a battery you can remove and recharge, without lugging the whole bike to a power socket

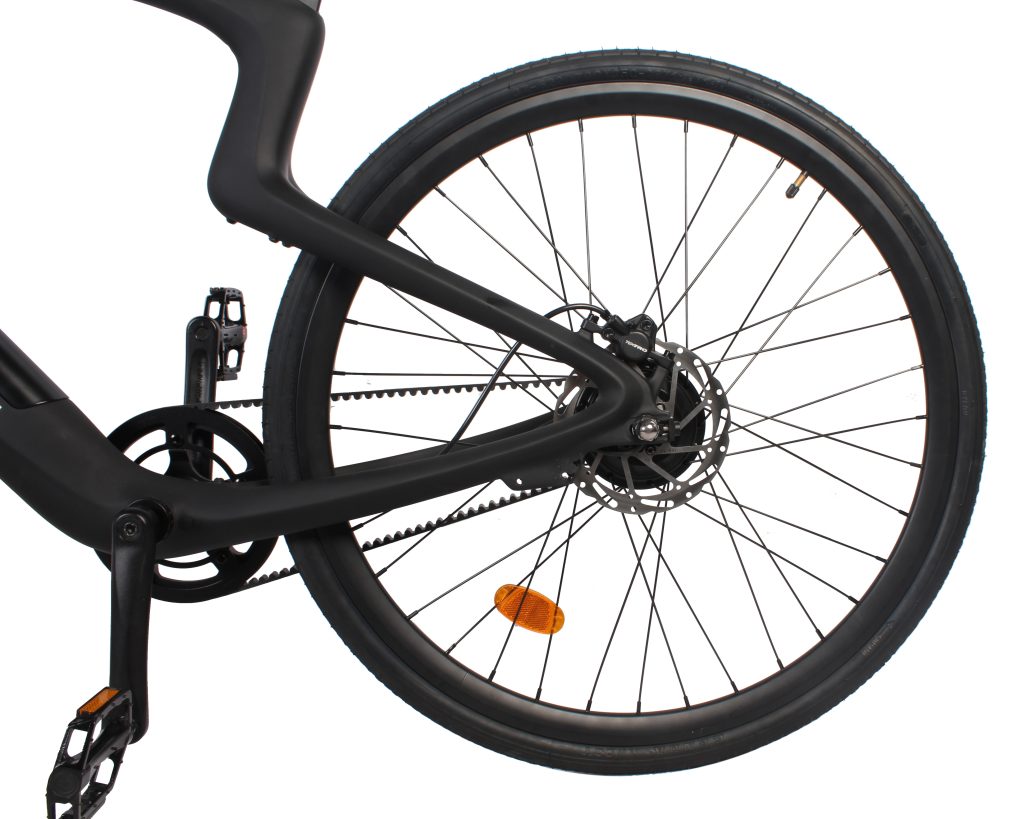

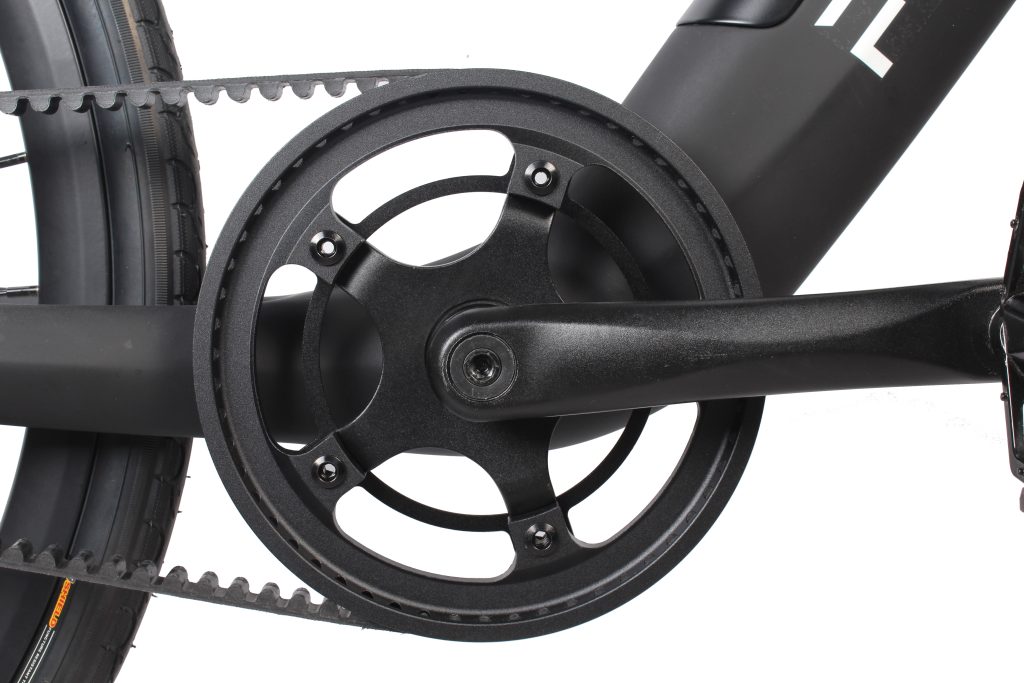

Carbon belt drive
Needs less taking care of than the traditional chains. Weather-resistant, flexible, durable, it’s made with stretch-free ates carbon fibre tensile cords. And it’s silent too

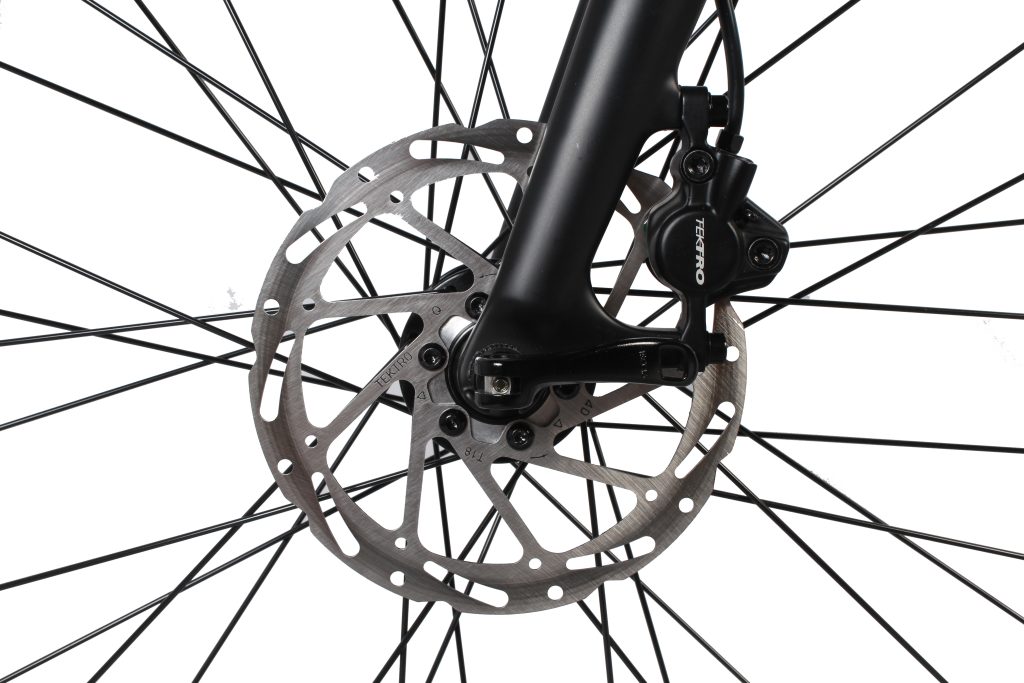

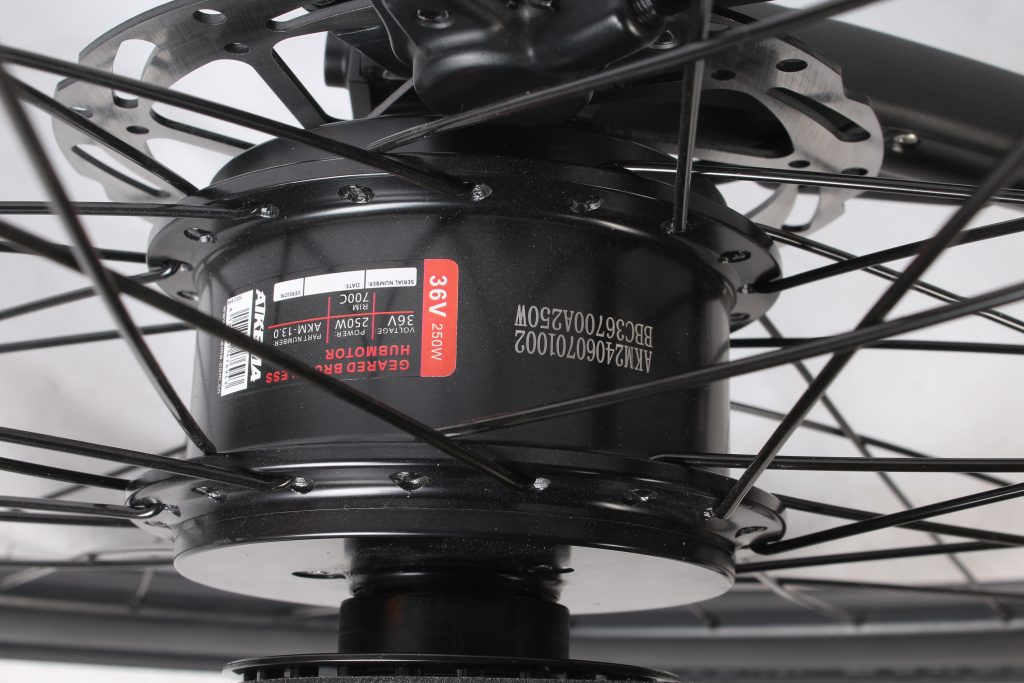

Disc brake& rear hub motor
The high performance of the disc brake greatly improves the safety of emergency braking in case of emergency. 250W Bafang rear hub motor provides a quite and lissome ride feeling.
