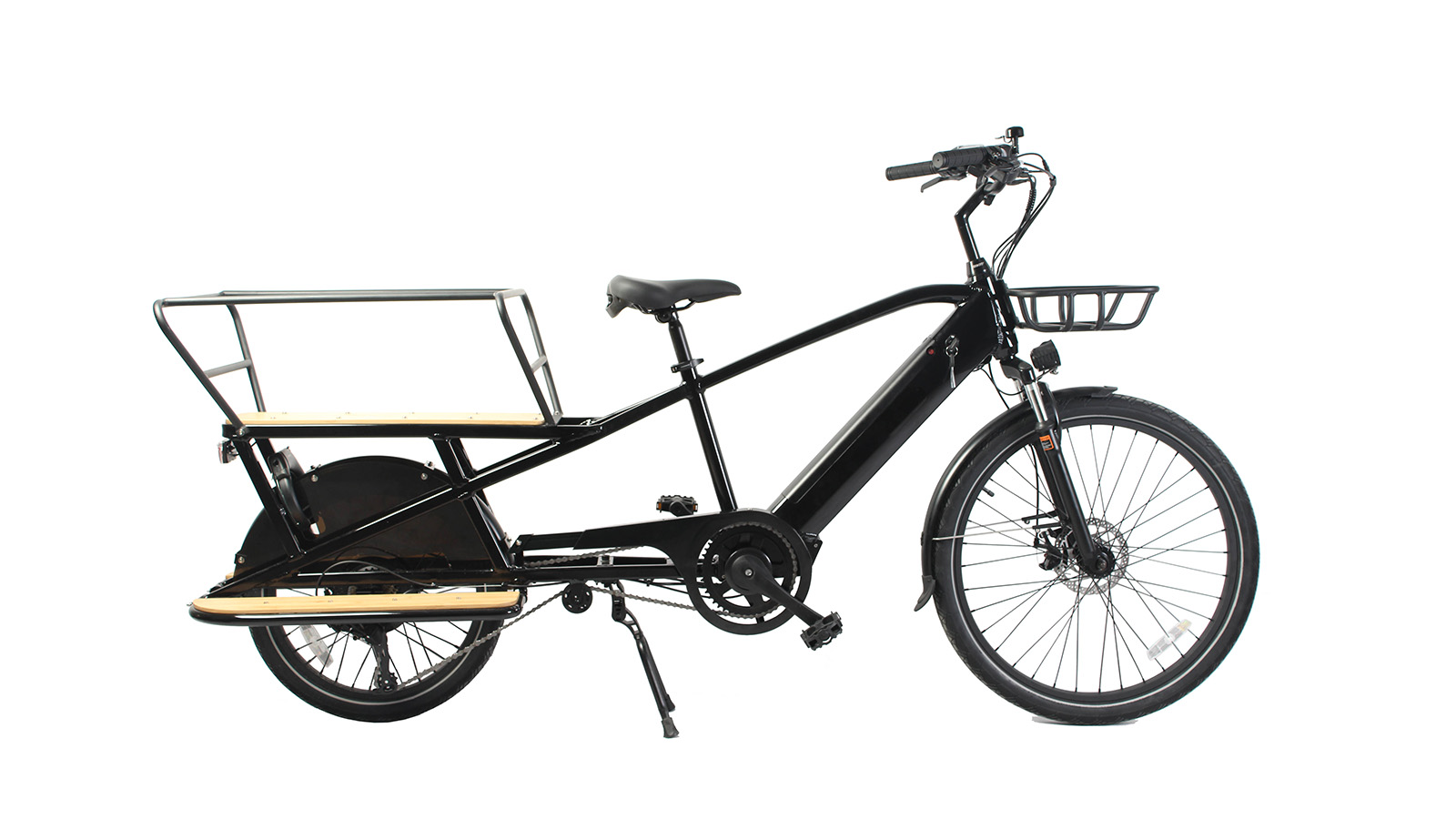

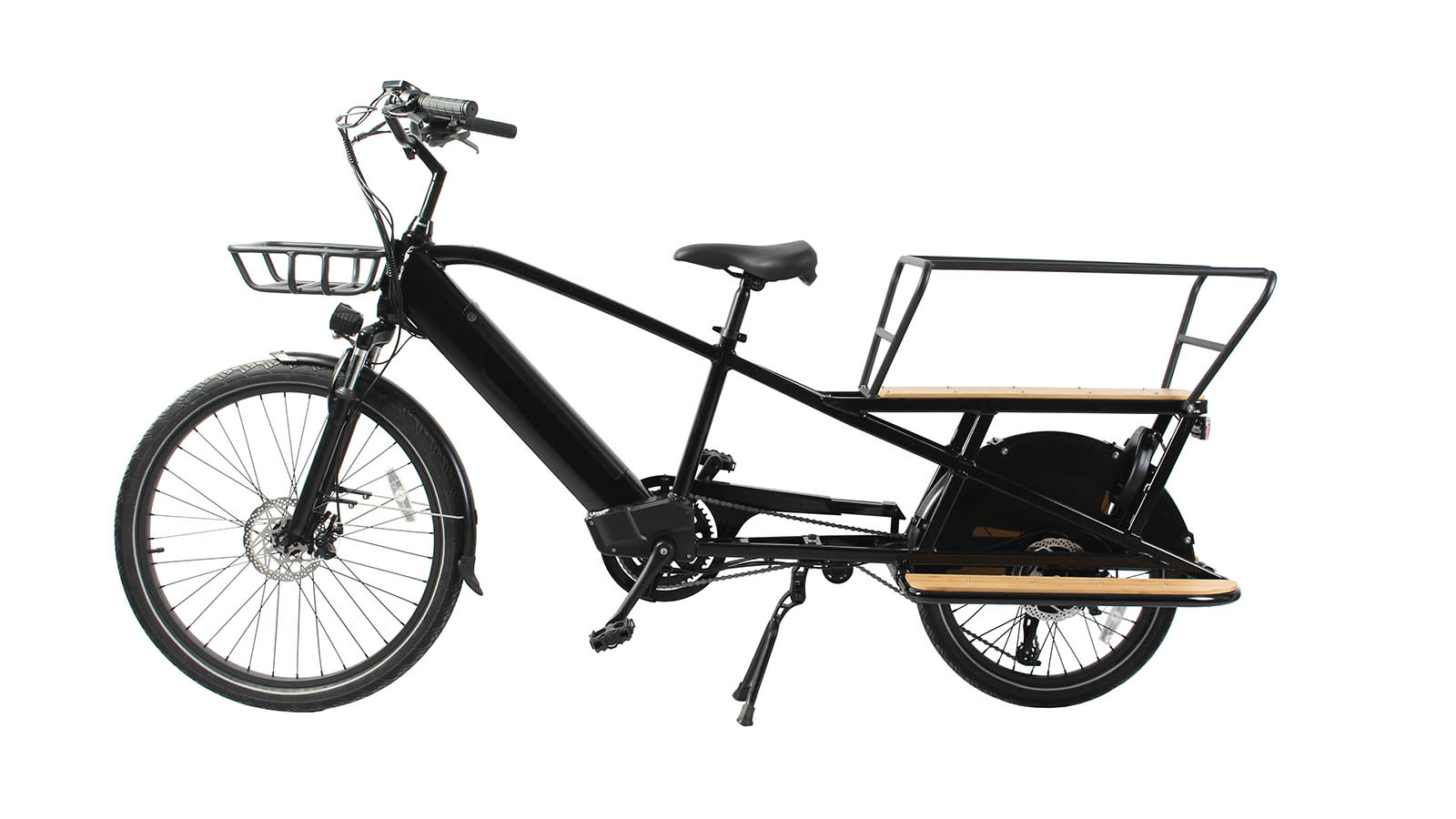

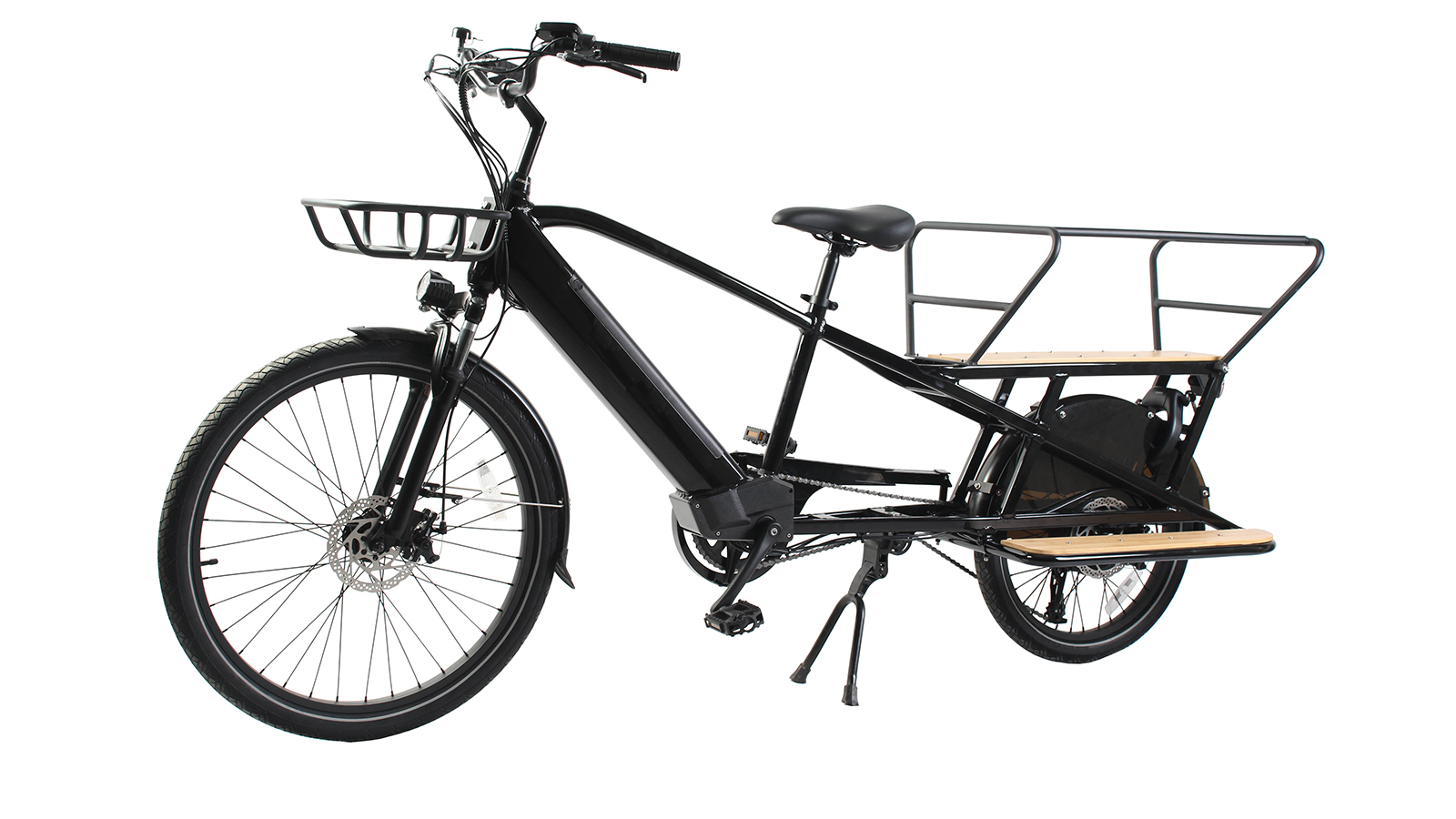

250W Electric Cargo Bike
![](https://www.freepathebikes.com/wp-content/uploads/2024/01/微信图片_20240124101040-1024x576.jpg)
![](https://www.freepathebikes.com/wp-content/uploads/2024/01/image.png)
Display and handlebar
Side mounted LCD display with city type handlebar, also front basket available
![](https://www.freepathebikes.com/wp-content/uploads/2024/01/微信图片_20240125113452.png)
Rear carrier
Heavy duty wide rear carrier and foot rest are covered with bamboo board, also safty guard to protect the kids.
![](https://www.freepathebikes.com/wp-content/uploads/2024/01/微信图片_20240125113737-1024x826.png)
SPECIFICATIONS
Model No. | C18 | Color | Customizable |
Electric System | |||
Motor | 48V250W rear hub motor | Battery | 48V15Ah lithium battery (720Wh) |
Controller | 48V15A | Display | LCD display |
PAS Sensor | Cadence sensor | Throttle | W/O |
Charger | 48V2A, 110-240 Applied | ||
Main Components | |||
Frame | Aluminium alloy 6061 | Fork | alu alloy suspension |
Handlebar | Alu alloy handlebar, city type | Stem | Alu alloy |
Brake | F/R Tektro Mechanical disc brake | Brake Lever | E-cut off Brake Lever, black |
Tyre | F: 26*2.0” R: 20*2.0” | Rim | double wall rim |
Spoke | Stainless Steel, 13g | Light | Head Light and rear light |
Chainwheel | Topwheel 46T | Crank | 170mm crank |
Chain | KMC Z7 | Gear | Shimano 7-SPD |
Shift Lever | Shimano thumb Type | Kickstand | heavy duty kickstnd |
Saddle | city type | Grip | VELO |
Pedal | Alu alloy, black | Rack | W/O |
Performance | |||
Range | 31-60km | Charging Time | 3-6h |
Max. Load | 120kg | Max. Speed | 25km/h |
Warranty | 1 year for the whole piece |
Model No. | C18 | Color | Customizable |
Electric SystemElectric System | |||
Motor | 48V250W rear hub motor | Battery | 48V15Ah lithium battery (720Wh) |
Controller | 48V15A | Display | LCD display |
PAS Sensor | Cadence sensor | Throttle | W/O |
Charger | 48V2A, 110-240 Applied | ||
Main Components | |||
Frame | Aluminium alloy 6061 | Fork | alu alloy suspension |
Handlebar | Alu alloy handlebar, city type | Stem | Alu alloy |
Brake | F/R Tektro Mechanical disc brake | Brake Lever | E-cut off Brake Lever, black |
Tyre | F: 26*2.0” R: 20*2.0” | Rim | double wall rim |
Spoke | Stainless Steel, 13g | Light | Head Light and rear light |
Chainwheel | Topwheel 46T | Crank | 170mm crank |
Chain | KMC Z7 | Gear | Shimano 7-SPD |
Shift Lever | Shimano thumb Type | Kickstand | heavy duty kickstnd |
Saddle | city type | Grip | VELO |
Pedal | Alu alloy, black | Rack | W/O |
Performance | |||
Range | 31-60km | Charging Time | 3-6h |
Max. Load | 120kg | Max. Speed | 25km/h |
Warranty | 1 year for the whole piece |
