SPECIFICATION
| Model No. | B3 | Color | Black & Customizable |
| Electric System | |||

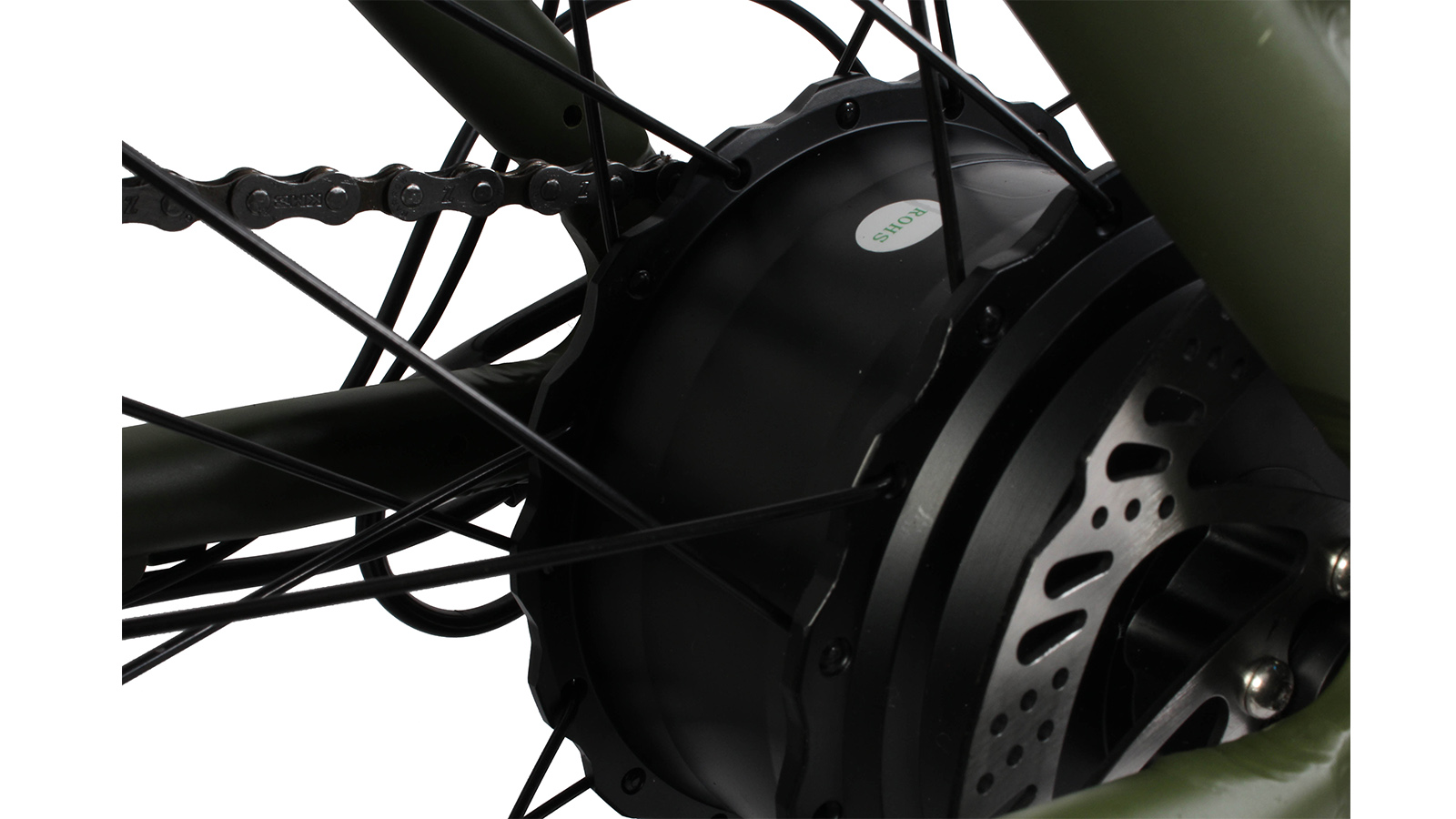

| Motor | LAX 48V250W rear wheel hub motor | Battery | 48V 14.5Ah Samsung lithium battery |
| Controller | KT Intelligent controller | Display | LCD display with USB connector |
| PAS Sensor | 12 magnet cadence sensor | Throttle | Thumb Throttle |
| Charger | 2A, 110-240V applied | ||
| Main Components | |||
| Frame | Alu alloy | Fork | MOZO suspension fork with lock |
| Handlebar | PROMAX foldable and adjustable | Stem | PROMAX foldable and adjustable |
| Brake | F&R Jevelo hydraulic disc brake | Brake Lever | Alu alloy |
| Tyre | ChaoYang 20”*4.0 | Rim | Double Wall Rim |
| Spoke | Stainless Steel | Light | Head and Rear Light |
| Chainwheel | Prowheel 52T with plastic cover | Crank | Prowheel, Alu alloy |
| Chain | KMC Z7, Steel | Gear | Shimano Tourney 7-spd |
| Shift Lever | Thumb Type | Kickstand | Alu alloy/ Steel |
| Saddle | Velo VL-6322 | Grip | Velo, VLG-776AD3H(G2),rubber black |
| Pedal | Wellgo,black and foldable | Rack | Alu alloy and black |
| Performance | |||
| Range | 31-60km | Charging Time | 3-6h |
| Max. Load | 100kg | Max. Speed | 27km/h |
| Warranty | 1 year for the whole piece |
Folding Switch
This model has a total of two folding switches, one on the headstock and one on the downtube. When folded, it easily fits into the boot of the car, which is very convenient.
Prowheel Chainwheel
The alloy or steel chainring has greater durability during riding, thus extending the life of the chainring.
Shimano TZ-7 Speed Derailleur
The Shimano Tourney 7 speed trigger shifters offer reliable gear changes, allowing you to keep your rides efficient and smooth.
